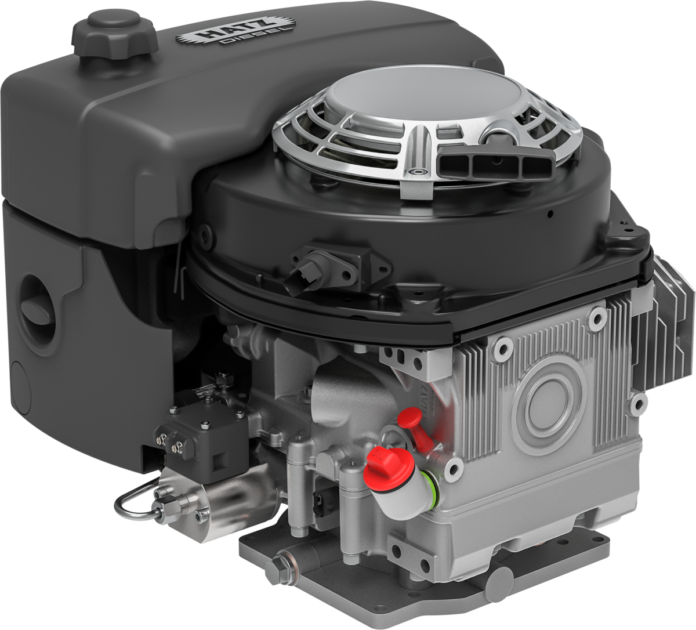

Hatz 1B30VE – Single Cylinder Engine

Hatz 1B30VE – Single Cylinder Engine

Hatz 1B30VE single cylinder engine – 4.1 kW max max torque of 14.7 Nm

Hatz
1B30VE

The Hatz 1B30VE is a versatile and reliable air-cooled, single-cylinder 4-stroke diesel engine, offering the same compact performance as the Hatz 1B30 series but with enhanced fuel efficiency and a more eco-friendly design. It is engineered for tough environments where both durability and performance are critical, featuring a 12 V electric start for convenient, reliable starting. Ideal for use in construction, agricultural, and industrial machinery, the 1B30VE ensures optimal operation under a variety of demanding conditions.

Enquire about this product ›

Specifications

Power 2.1 - 4.1 kW
Max. torque 14.7 Nm

Features

  • Power Output: 2.1 – 4.1 kW @ 3000 rpm

  • Torque: 14.7 Nm

  • Displacement: 0.347 L (80 mm × 69 mm bore × stroke)

  • Engine Type: Air-cooled, 4-stroke diesel

  • Cylinders: 1

  • Compression Ratio: 21.5 : 1

  • Starting System: 12 V electric start (optional recoil backup)

  • Dry Weight: 43 kg (approx.)

  • Emissions Compliance: EU Stage V / EPA Tier 4 equivalent
