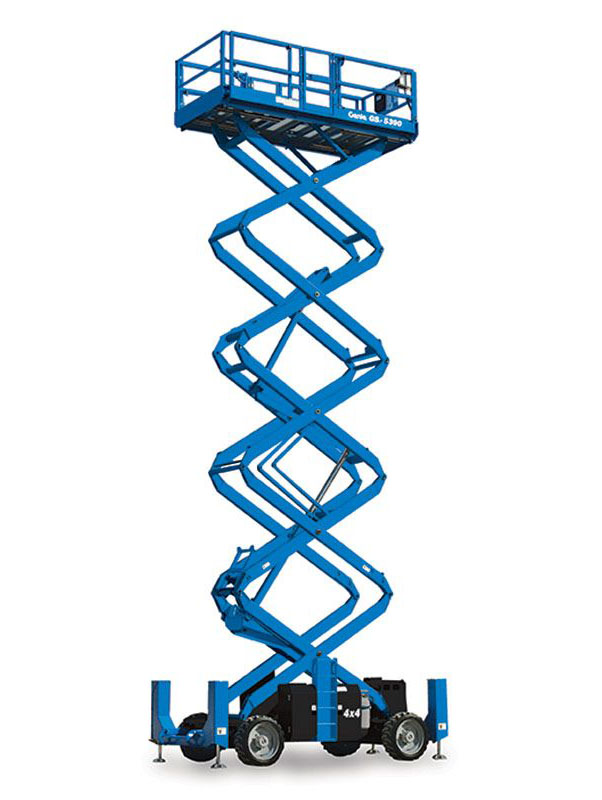

Genie GS-4390 Rough Terrain Self-Propelled Scissor Lift
Genie GS-4390 Rough Terrain is tough, 4-wheel drive with a capacity of up to 7 people at a max. height of 14.75M
The Genie GS-4390 rough terrain scissor lift is built for extra-rugged performance and is able to traverse through uneven rough terrain environments. Built to last, it’s ideal to increase operator productivity on demanding outdoor worksites with a capacity of up to 7 people onboard to a max working height of 14.751M.
Specifications
| Weight | 5973kg |
| Working height | 14.75M |
| Lift capacity | 680kg / Extension deck extended: 227kg |
| Power | Deutz D2011L03i 3 cylinder 48hp (35.8 kW) |
Features
- Platform Height 7.92m 9.96m 12.19m
- 3.98 x 1.83M steel frame platform with replaceable aluminium deck
- 1.52M extension deck
- Automatic levelling hydraulic outriggers
- Up to 50O gradeability when driving on slopes
- Proportional lift and drive
- 4WD
- Oscillating axle
- Positive traction control
- Four-wheel braking
- Swing-out engine tray
- Non-marking foam-filled rough terrain tyres (eco fill)
- Tilt level sensor with audible alarm
- Descent alarm
- Horn
- Hour meter
- Dual flashing beacons
- Motion alarm
