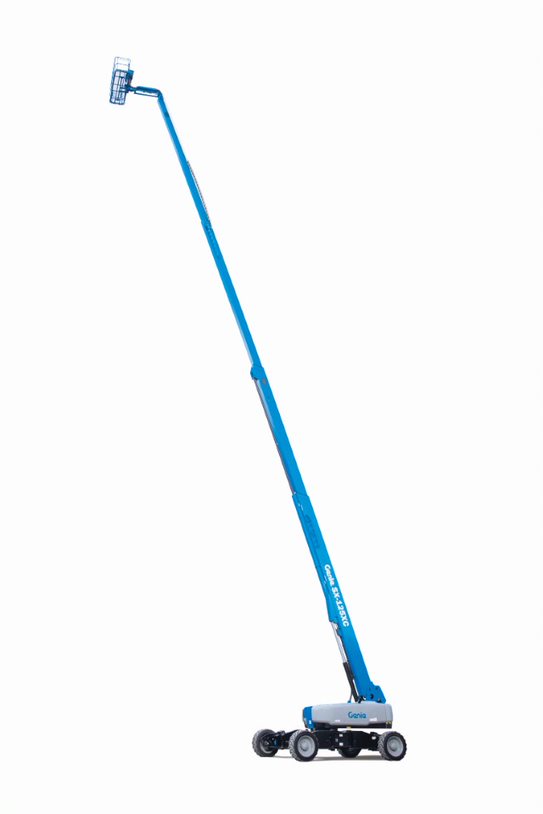

S-125 XC Telescopic Boom

Genie S-125 XC is a diesel powered telescopic boom with extra capacity capability of up to 454kg at a max. height of 40.1M.

S-125 XC

The Genie® Xtra Capacity™ S®-125 XC™ boom lift is a true King of Capacity. Responding to customer demand worldwide for higher capacity aerial work platforms, this model offers operators the opportunity to do more with a single unit. The Genie Xtra Capacity™ (XC) feature lets up to three people work onboard while still leaving room for tools and jobsite materials. Designed to perform, this boom will quickly increase rental profitability.

The Genie® SX™-125 XC™ telescopic boom lift works in more applications that require higher capacities thanks to its industry-leading dual lift capacity and Max working height of 40.1M.

Specifications

Weight20700kg
Working height max.40.1M
Lift capacityRestricted: 454kg / Unrestricted: 300kg
Horizontal reach max.24.38M

Features

  • 2.69 m below ground reach
  • Up to 300kg lift capacity unrestricted & up to 454kg restricted
  • 1.52M jib boom
  • 2.44m wide steel platform
  • 360 deg continuous turntable rotation
  • Rough terrain foam-filled tyres
  • 4.11 m wheelbase width
  • Inside turning radius: Axle retracted 8.03M / Axle extended 2.90M
  • Self-levelling platform
  • Fully proportional controls
  • Thumb rocker steer
  • Drive enable
  • Horn
  • Hour meter
  • Tilt alarm
  • Lift Power
  • Positive traction drive
  • Two speed wheel motors
  • Flashing beacons and travel alarm
  • 4 x 4
  • Mini XChassis extendable axles
  • Deutz D2011L04i 3 cylinder 74hp (55 kW)
