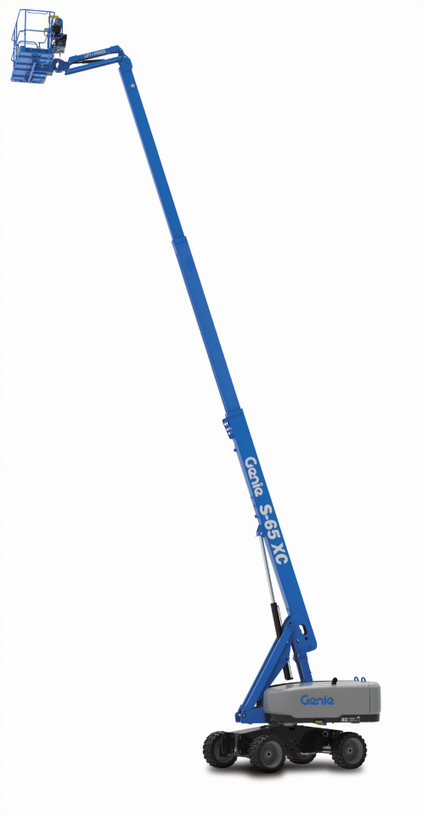

S-65 XC Telescopic Boom

Genie S-65 XC is a diesel powered telescopic boom with extra capacity capability of up to 454kg at a max. height of 21.81M.

S-65 XC

Genie® S®-65 XC telescopic boom lift is the redesigned Xtra Capacity™ version of the popular Genie S-65. It can perform a wider range of heavier lift tasks on construction and industrial jobsites thanks to its dual lift capacity of 454kg restricted and 300kg unrestricted and a working height of 21.81M.


Weight11,673 kg
Working height max.21.81M
Lift capacity max.Restricted: 454kg / Unrestricted: 300kg
Horizontal reach max.16.51M


  • 2.6M below ground reach
  • Up to 300kg lift capacity unrestricted & up to 454kg restricted
  • 2.44M wide steel platform
  • 360 deg continuous turntable rotation
  • Rough terrain foam-filled tyres
  • 2.5M wheelbase width
  • 2.4M inside turning radius
  • Self-levelling platform
  • Fully proportional controls
  • Thumb rocker steer
  • Drive enable
  • Horn
  • Hour meter
  • Tilt alarm
  • Positive traction drive
  • Two speed wheel motors
  • Flashing beacons and travel alarm
  • Active Oscillation 4WD
  • Lift Power – 7.5kW 240V 50Hz generator
