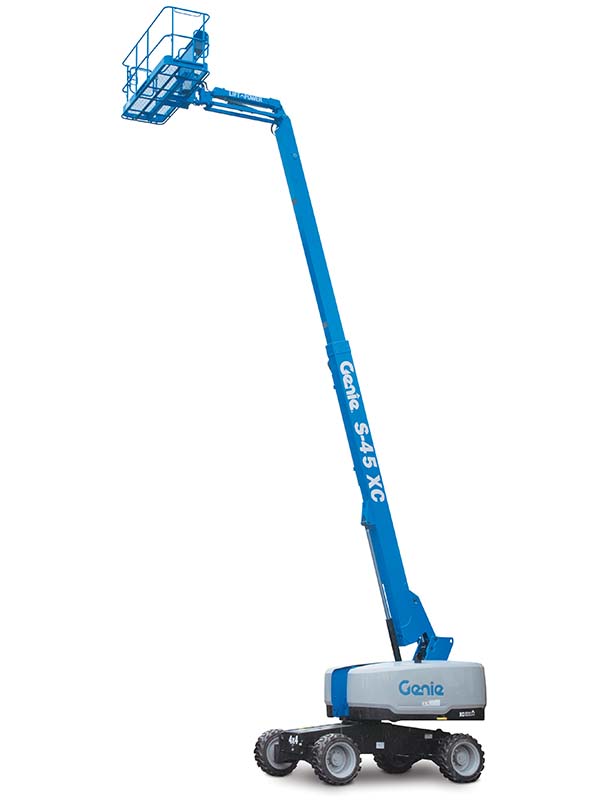

S-45 XC Telescopic Boom

Genie S-45 XC extra capacity telescopic boom has industry-leading dual capacity for heavy lifting in construction up to 454kg

S-45 XC

The Genie® S-45 XC™ telescopic boom is engineered to work in more applications that require higher capacities. With industry-leading dual lift capacity — 300 kg (660 lb) / 454 kg (1,000 lb) — a smooth operating envelope, this new XC boom lift is a perfect fit for your customers’ heavy lifting in construction, bridge inspections and maintenance, stadium and sports arena, gas and oil refineries, industrial, telecommunications and utility applications.

Specifications

Weight7282kg
Working height max.15.56M
Lift capacity max.454kg restricted / 300kg unrestricted
Horizontal reach max.11.02M

Features

  • Up to 300kg lift capacity unrestricted & up to 454kg restricted
  • 2.44M wide steel platform
  • 360 deg continuous turntable rotation
  • Rough terrain foam-filled tyres
  • 2.46M wheelbase width
  • 2.08M inside turning radius
  • Self-levelling platform
  • Fully proportional controls
  • Thumb rocker steer
  • Drive enable
  • Horn
  • Hour meter
  • Tilt alarm
  • Lift Power
  • Positive traction drive
  • Two speed wheel motors
  • Flashing beacons and travel alarm
  • Active Oscillation 4WD
  • Lift Power – 7.5kW 240V 50Hz generator option
