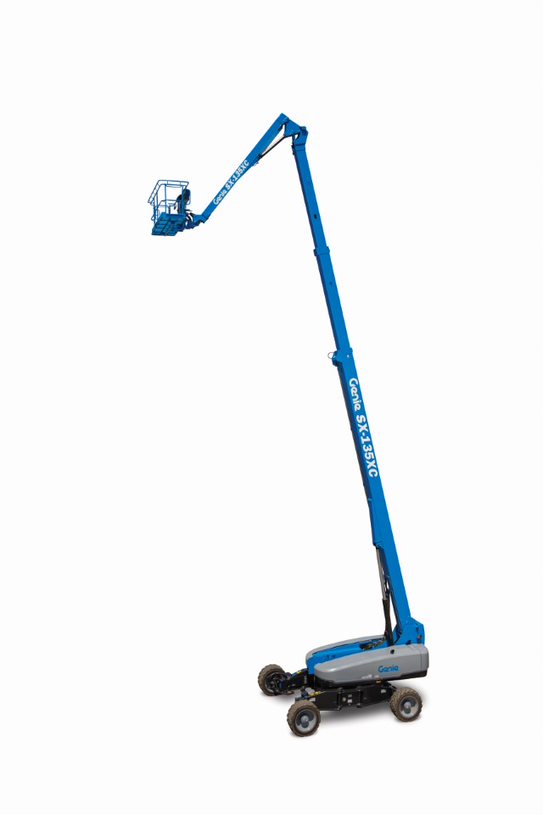

SX-135 XC Telescopic Boom

Genie SX-135 XC is a diesel powered telescopic boom with extra capacity capability of up to 454kg at a max. height of 43.15M.

SX-135 XC

The Genie SX-135 XC self-propelled telescopic boom lift is going where no boom lift has gone before by delivering industry-leading outreach and capacity throughout the full working envelope for incredible operational accessibility.

The first model in the new Genie Xtra Capacity™ (XC) family, the Genie SX-135 XC boom lift is packed with features, including 43.15M of outreach, and up to 454kg lift capacity.


Working height max.43.15M
Lift capacityUnrestricted: 300kg / Restricted: 454kg
Horizontal reach max.27.43M


  • X-chassis extendable axles
  • 5.49M to 9.14M Telescoping Jib-Extend™
  • Self-leveling platform
  • 160° hydraulic platform rotation
  • Thumb rocker steering
  • Proportional joystick controls
  • Hydraulic oil cooler
  • Drive enable system
  • AC power cord to platform
  • Horn, Hour meter
  • Tilt alarm, Descent alarm
  • Flashing beacon
  • 360° continuous turntable rotation
  • Positive traction 4WD
  • Two speed wheel motors
  • Four wheel high angle steer
  • Four steering modes: front, rear, crab and coordinated
  • On board full diagnostics and engine monitoring display
  • Ground control box cover
  • Certified load sensor
  • Telematics ready connector
  • Lockable platform & ground control
  • 7.5 kW generator – 240V/50 Hz
  • Engine: Deutz D2011L04i 3 cylinder 74hp (55 kW)
