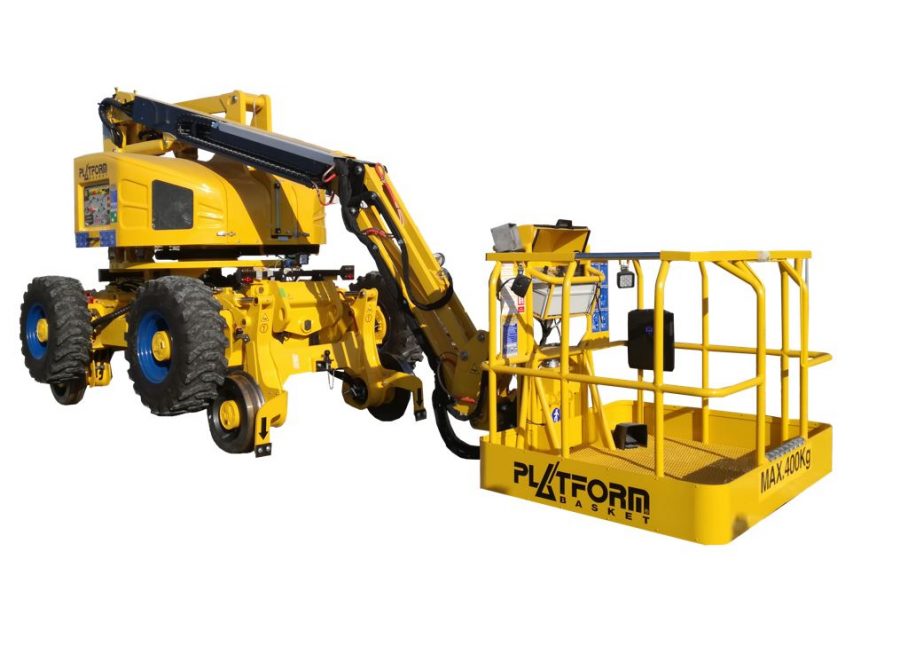

PB RR14 EVO Rail Boom Lift

PB RR14 EVO is designed and built specifically for rail maintenance with a max height of 14.4M and an outreach of 9.3M


Monitor Lifts range of railroad boom lift is designed and built with a deep understanding of the electric rail maintenance sector and other passenger transport maintenance work requirements.

The self-levelling turret and very strong chassis allows an amazing horizontal outreach of 9.3m and a max. working height of 14.4M when set-up on rail.


Weight 13400 kg (approx)
Working height max. 14.4M
Capacity400 kg (3 person)


  • Max gradeability lengthwise 16 degrees
  • Engine: Hatz 48 hp diesel
  • Dive speed: Rail 18 km/hr (road 8 km/hr)
  • Turret rotation 359 degrees
