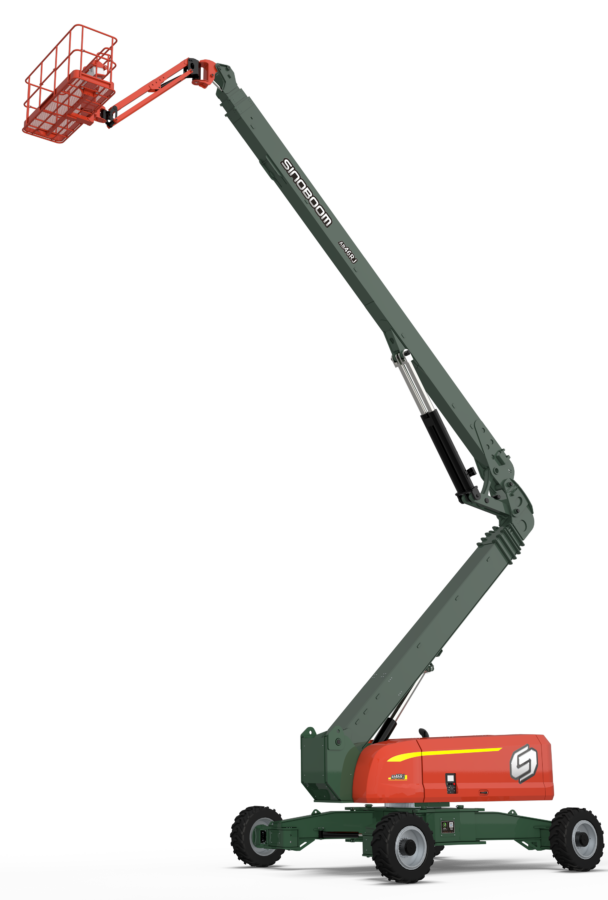

Sinoboom 48.6M 27300kg Diesel Rough Terrain Articulating Boom Lift
With a maximum working height of 48.6M and a horizontal reach of up to 25.5M this diesel-powered Sinoboom articulated boom lift has a capacity of up to 455kg and a machine weight of 27300kg
The AB46RJ features an articulating boom with an extendable platform, providing access to hard-to-reach areas, both vertically and horizontally. It allows for greater flexibility, particularly in confined or tight spaces where other lifts may struggle to maneuver. Equipped with four-wheel drive and large, non-marking tires, the AB46RJ is built for rough terrain. It can easily navigate uneven ground, making it suitable for construction sites, outdoor maintenance, and other rugged environments. Designed for demanding applications, the AB46RJ is constructed with high-quality materials, offering robustness and durability in various weather conditions, making it ideal for long-term use on job sites.
Ideal for extreme height requirements such as working on multi-storey buildings or facades as well as rooftops. With its rough terrain capability it is incredibly useful for landscaping, forestry and idustrial maintenance on uneven surfaces. Great for events, concerts, and exhibitions, where maneuverability and access to elevated positions are crucial. The AB46RJ is often used for inspecting high structures, making repairs to signage, and performing general maintenance at height, especially in outdoor or inaccessible locations.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.
Specifications
Weight | 27300kg |
Working Height | 48.6M |
Platform Capacity | Restricted 455kg / Unrestricted 275 |
Power | Cummins QSF3.8t3TC99 |
Horizontal Reach max | 25.5M |
Features
- Industry leading 7” display screed for faults and status information reducing service technical assistance and remote guidance.
- Secure and reliable folding arm, luffing operation with hydraulic interlocking and hydraulic-connection body levelling
- 3 joysticks with variable proportional control, accuracy in reaching the operation target
- The working platform can be lifted and lowered to any position without the need to operate the secondary boom
- Max Working Height 48.6 m
- Max Platform Height 46.6 m
- Max Horizontal Reach 25.5 m
- Length-Stowed 15 m
- Width-Stowed 2.49 m
- Height-Stowed 3.2 m
- Wheelbase 5.2 m
- Ground Clearance 0.33m
- Platform Size (L×W×H) 2.44 m×0.91 m×1.1 m
- Platform Capacity Restricted 455kg / Unrestricted 275
- Max Platform Occupants 2 Persons
- Drive Speed (Stowed) 0~4.5 km/h
- Drive Speed (Raised) 0~0.48 km/h
- Gradeability 40%
- Turntable Rotation 360o continuous
- Platform Rotation 180o
- Jib Rotation 150o
- Tilt Rating 5o
- Turning Radius (Inside/Outside) 7.1 m/9.52m
- Turntable tail swing 4.6 m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 445/50D710 24 PR/foam filled
- Drive × Steer 4WD×4WS
- Hydraulic Tank Capacity 410L
- Fuel Tank Capacity 200L
- Cummins QSF3.8t3TC99
- System Voltage 12V DC
- 4 WD × 4 WS
- Hydraulic Platform Levelling
- Proportional control with 3 joysticks
- Tilt protection system
- Flashing beacon
- 7-in display screen
- Automotive-grade sleeves for all pipes
- White noise alarm
- Secondary guarding device
- Telematics-ready connector
- Half mesh (for platform with swinging gate)
- Weighing system
- 2.44 m platform with swing gate
- Battery isolator
- Fault diagnostic system
- 4-wheel brake
- Emergency lowering system
Options & Accessories
- AC power to platform
- Platform work light
- Glazier kit (for platform with swinging gate)
- 1.83 m 2.44 m platform with swinging gate
