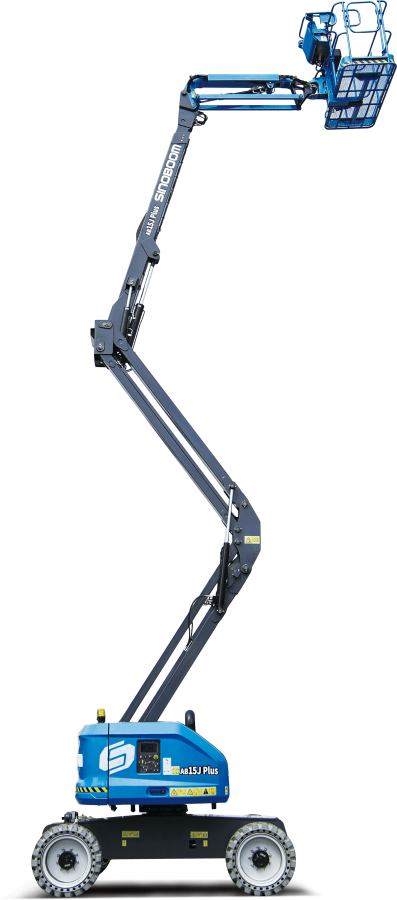

Sinoboom 16.7M Diesel Articulating Boom Lift – Extra Capacity
Maximum working height of 16.7M and a horizontal reach of up to 8.5M with extra capacity of up to 300kg
This articulated jib has a maximum extra platform capacity of 300kg for up to 2 people with a gradability of up to 40%, and horizontal reach of up to 8.5M.
Has a narrow width and is ideal for construction sites such as installing windows, roofing and exterior finishing as well as maintenance or repair work on multi-story buildings. Useful for industrial facilities, infrastructure projects, utility work and agricultural applications and remote locations where electric power might not be available.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Specifications
| Weight | 8070kg |
| Working Height | 16.7M |
| Platform Capacity | 300kg |
| Power | Kubota V2403BM-CT04 36.3 kW |
| Horizontal Reach max | 8.5M |
| Up & over Clearance | 7.3M |
Features
- Great rough terrain performance due to active oscillating function, combined with 4 wheel drive, 40% gradeability and high ground clearance.
- Large platform capacity with room for up to 2 people and tools
- Efficient hydraulic system with function pump upgraded to piston pump for more oil flow and higher oil pressure
- Greater tilt rating and ultimate HMI experience
- Max Working Height 16.7 m
- Max Platform Height 14.7 m
- Max Horizontal Reach 8.5 m
- Max Up and Over Clearance 7.3m
- Length-Stowed 7.49 m
- Width-Stowed 2.3 m
- Height-Stowed 2.28 m
- Wheelbase 2.3 m
- Ground Clearance 0.37m
- Platform Size (L×W×H) 1.83m × 0.85m × 1.1 m
- Capacity 300 kg
- Max Platform Occupants 2 Persons
- Drive Speed (Stowed) 0～4.5 km/h 4WD
- Drive Speed (Raised) 0～1.0 km/h
- Gradeability 40%
- Turntable Rotation 360o continuous
- Turntable Rotation 355o non-continuous (Optional)
- Platform Rotation 180o
- Tilt Rating 5o
- Turning Radius (Inside/Outside) 1.82 m/4.78 m
- Turntable tail swing 0.1m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 33x12D610/foam filled – 33×12-20/solid
- Drive × Steer 4WD×2WS
- Hydraulic Tank Capacity 112L
- Fuel Tank Capacity 55L
- Kubota V2403BM-CT04 36.3 kW
- System Voltage 12V DC
- 4 WD × 2 WS
- Hydraulic Platform Levelling
- Proportional control with 3 joysticks
- Tilt protection system
- Flashing beacon
- 7-in smart screen
- Automotive-grade sleeves for all pipes
- Secondary guarding device
- Telematics-ready connector
- Emergency lowering system
- Active oscillating function
- Weighing system
- Non-marking tyres
- Battery isolator
- Platform rotation function
- Max tilt to 5 degrees
- Continuous turntable rotation at 360 degrees
- Rotating warning light for safety warning
- Anti-restart protection for engine
- Horn and buzzer for safety warning
- Automatic engine shutdown in case of Malfunction
- Fault diagnostic system
- Rear position and travel confirmation
- Mechanical release for travel braking
- Rotatable engine
- Engine pre-heating
- Platform with inward swinging gate
- Tool box (for platform with inward swinging gate)
Options & Accessories
- AC power to platform
- Platform work light
- Oil cooler (engine power > or = 36kW
- Half-height guardrail (for platform with inward swinging gate)
- Solid tyre
- Manual storage box
- 1.45m platform
Each elevated work platform comes with an impressive factory warranty and a comprehensive After Sales Support programme supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
Warranty:
- Structural: 5 Years
- Mechanical, Electrical, Hydraulic: 2 Years
- Engine: 2 Years
