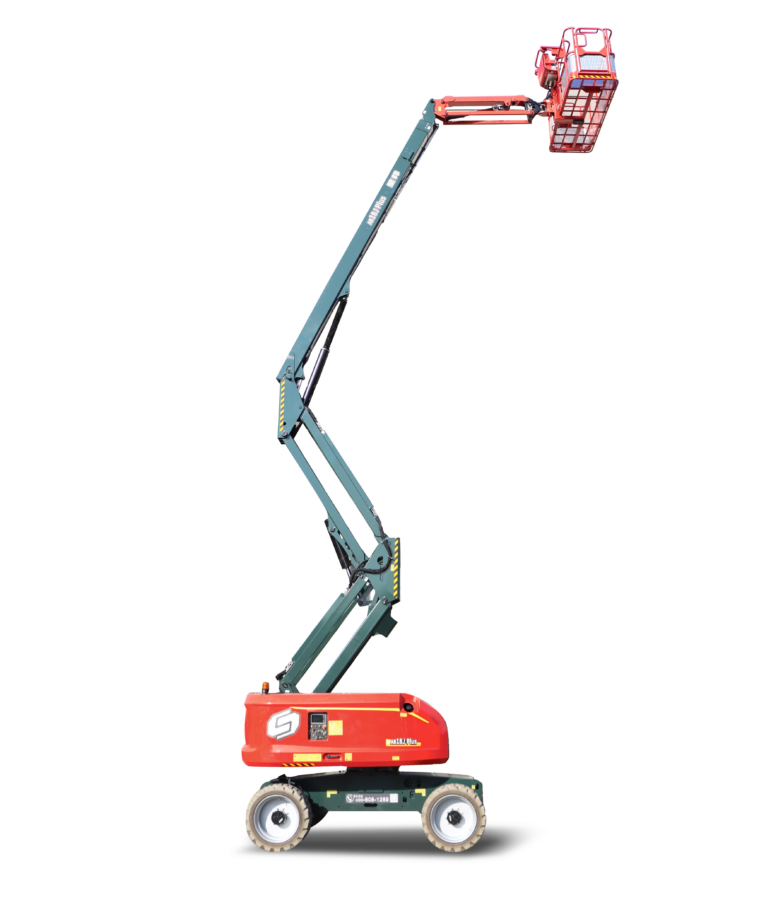

Sinoboom 20.58M Diesel Articulating Boom Lift
Maximum working height of 20.58M - horizontal reach of up to 12M with a capacity of up to 340kg (restricted)
Rough terrain, diesel-powered articulated jib has a maximum platform capacity of 340kg (restricted), a gradability of up 40% at 4WD and patented anti-skid control – it also has a horizontal reach of up to 12M.
The turntable is 360 degrees continuous. Ideal for construction sites such as installing windows, roofing and exterior finising as well as maintenance or repair work on multi-story buildings. Useful for industrial facilities, infrastructure projects, utility work and agricultural applications and remote locations where electric power might not be available.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Specifications
| Working Height | 20.58M |
| Weight | 9620kg |
| Platform Capacity | 250kg (unrestricted) / 340kg (restricted) |
| Power | Diesel |
| Horizontal Reach max | 12M |
| Up & over Clearance | 7.98M |
Features
- Industry leading 7” display screed for faults and status information reducing service technical assistance and remote guidance.
- Active oscillating function in both working and stowed states, and a tilt rating of up to 5 degrees, providing adaptability to more rugged road surfaces and strong field operation ability
- Maximum platform capacity of 340kg enabling more tools and personnel, improving job efficiency
- 4WD + 4WS high performance configuration for greater gradeability, off-road capability, and smooth manoeuvrability
- Max Working Height 20.58 m
- Max Platform Height 18.58 m
- Max Horizontal Reach 12 m
- Max Up and Over Clearance 7.98 m
- Length-Stowed 8.8 m
- Width-Stowed 2.49m
- Height-Stowed 2.54 m
- Wheelbase 2.49 m
- Ground Clearance 0.42m
- Platform Size (L×W×H) 2.44 m×0.91 m×1.1 m
- Capacity 250 kg (unrestricted) / 340 kg (restricted)
- Max Platform Occupants 2 Persons
- Drive Speed (Stowed) 0～4.8 km/h
- Drive Speed (Raised) 0～1.1 km/h
- Gradeability 40%
- Turntable Rotation 360o continuous
- Platform Rotation 160o
- Tilt Rating 5o
- Turning Radius (Inside/Outside) 1.63 m/3.59 m
- Turntable tail swing 0.78m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 33 x 12D610/foam filled
- Drive × Steer 4WD+4WS
- Hydraulic Tank Capacity 130L
- Fuel Tank Capacity 100L
- Diesel engine
- System Voltage 12V DC
- 4 WD x 4 WS
- Hydraulic Platform Levelling
- Proportional control
- Tilt protection system
- Flashing beacon
- 7-in display screen
- White noise alarm
- Secondary guarding system
- Telematics-ready
- Half mesh for platform
- Weight management system
- Non-marking tyres
- Battery isolator
- Emergency lowering system
- Fault diagnostic system
- Manual storage box
Options & Accessories
- Wheel nut indicators
- AC power to platform
- Fire extinguisher / bracket
- Pipe lifting system
- Panel lifting system
- Mine spec.
- Telematic device
- Driving light
Each elevated work platform comes with an impressive factory warranty and a comprehensive After Sales Support programme supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
Warranty:
- Structural: 5 Years
- Mechanical, Electrical, Hydraulic: 2 Years
- Engine: 2 Years
