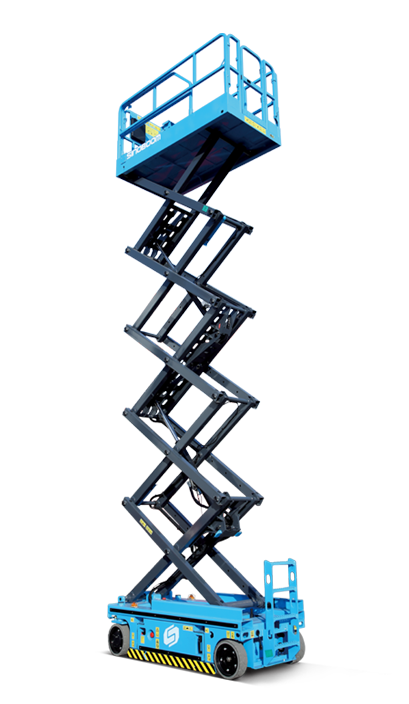

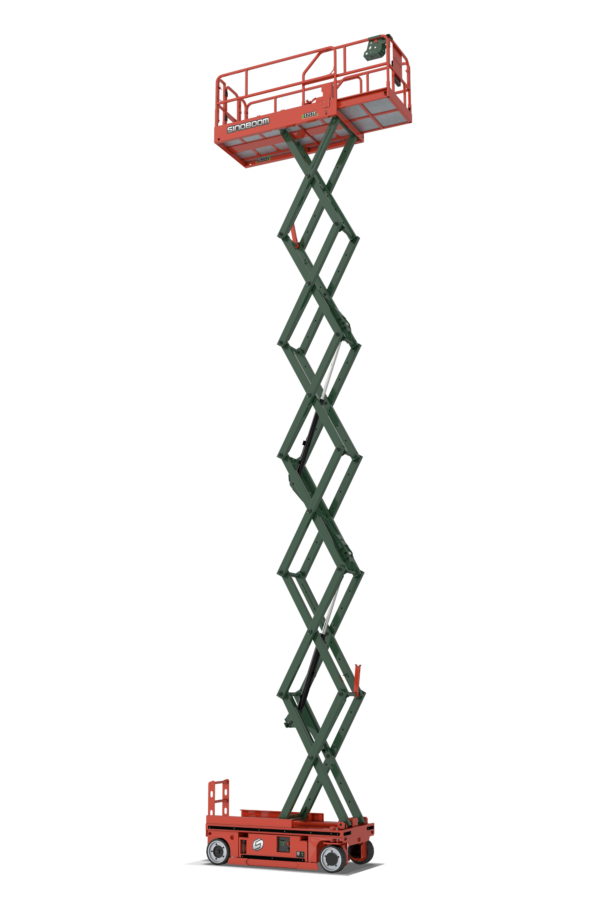

Sinoboom 13.9M 3,210kg Electric Scissor Lift
Higher work efficiency with wider, stable scissor lift design
Delivering superior performance in challenging environments, equipped with a powerful electric motor this EWP is eco-friendly with zero emissions and extensive vertical reach. making it the ideal choice for various construction, maintenance, and installation projects.
Perfect for vaious construction and installation projects that require elevation, such as electrical work, painting, and high-level maintenance. The new wide scissor design providees a more stable working-at-height experience, ensuring stability and safety on the job carrying a maximum platform capacity of 320kg.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with our access specialist. Genuine spare parts are also available and our specialist technicians can help keep your machine on the job in great working condition.
Specifications
| Weight | 3210kg |
| Working Height | 13.9M (Indoor) / 11.9M (Outdoor) |
| Platform Capacity | 320kg |
| Power | Batteries 24 V DC / 3.3 kW |
| Platform Size (LxWxH) | 2.3M×1.15M×1.1M |
| Gradability | 25% |
| Drive Type | 2WD×2WS |
Features
- Higher work efficiency
- Environmental protection, zero emissions
- The short design of sliding rail makes debris easy to clean
- Rapid, convenient transport with two-way forklift slot
- Lower cost of ownership with highly versatile parts
- New, wide scissor design, for a more stable working-at-height experience
- Bumper rail and indented sliding rail designed for anti-scratch
- Max Working Height (Indoor/Outdoor) 13.9M / 11.9M
- Max Platform Height (Indoor/Outdoor) 11.0M / 9.0M
- Horizontal Platform Extension 0.9M
- Length-Stowed 2.45M
- Width-Stowed 1.17M
- Height-Stowed (Rails Folded) 1.98M
- Height-Stowed (Rails Unfolded) 2.6M
- Wheelbase 1.88M
- Ground Clearance (Pothole Guard Stowed) 0.1M
- Ground Clearance (Pothole Guard Deployed) 0.025M
- Platform Size (L×W×H) 2.3M×1.15M×1.1M
- Platform Capacity 320kg
- Extension Platform Capacity 120kg
- Max Platform Occupants (Indoor/Outdoor) 2 Persons / 1 Person
- Drive Speed (Stowed) 0～4 km/h
- Drive Speed (Raised) 0～0.8 km/h
- Lift Time (Unloaded) 63 s～68 s
- Lower Time (Unloaded) 44 s～49 s
- Gradeability 25%
- Allowable Inclination (front-to-back/side-to-side) 3o / 1.5°
- Turning Radius (Inside/Outside) 0.0M / 2.35M
- Tire Size/Type 380 x 125mm / solid
- Drive × Steer 2WD×2WS
- Power Source 24V / 3.3kW
- Drive Motor 24V DC/0.85 kW / 24V AC/0.7kW
- Hydraulic Tank Capacity 15L
- Battery 24V, 280 Ah (Lead acid battery) / 25.6V, 200Ah (Lithium battery)
- Charger (Input/Output) 100-240V AC / 30A
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency stop
- Emergency lowering system
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track unit connector
- Overload sensing system
- Fault diagnosis system
- White noise alarm
- Drivable at full height
- Maintenance-free battery
- Automatic pothole protection
- Bumper rails
Options & Accessories
- RCBO
- AC power to platform
- Battery isolator
- Lithium battery
- AC Drive Motor
- EQSS/Protector
Each elevated work platform comes with an impressive factory warranty and a comprehensive After Sales Support programme supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
