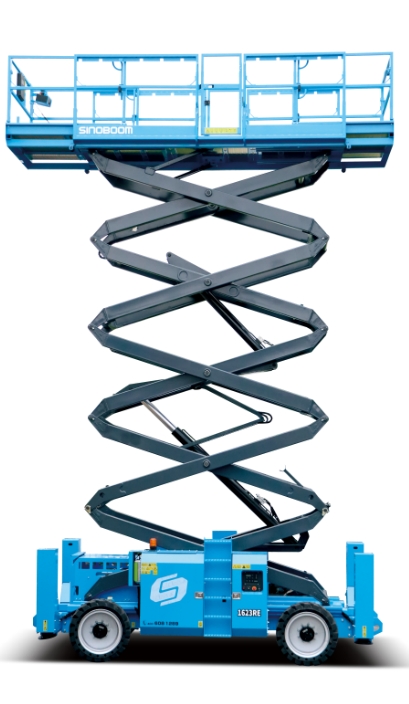

Sinoboom 18.2M 9,250kg Rough Terrain Electric Scissor Lift

Massive 680kg / 7 person lifting capacity electric scissor lift

1623RE

Designed to operate on rough terrains, this robust scissor lift is equipped with advanced features that enhance safety and productivity when tackling heavy duty tasks.
The 4WD enhances mobility and performance on steep and rugged terrain with a maximum gradeability of 40%! Hydraulic outriggers provide additional stability for reducing the risk of accidents. Ideal for constructions sites, industrial applications, landscaping and arboriculture the energy sector as well as mining and quarry with zero-emissions.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine on the job in great working condition.

Specifications

Weight9250kg
Working Height18.2M
Platform Capacity680kg
PowerElectric 48 V / 480 Ah
Platform Size (LxWxH)6.5M platform = 3.96M×1.82M×1.1M / 7.4M platform = 4.84M×1.82M×1.1M
Gradability40%
Drive Type4WD×2WS

Features

  • Powerful platform capacity for unprecedented efficiency
  • Two-way extendable platform, spacious working platform
  • Wide-angle tilt, one-click outrigger levelling
  • Up to 40% gradeability, easily handling outdoor needs
  • Stable movement, copes well with potholed ground
  • Integrated pipeline assembly, convenient for troubleshooting
  • Double-door design for easy maintenance, spacious area for maintenance
  • Comfortable working environment without noise pollution
  • Meet indoor or emissions-critical site requirements
  • Battery quality assurance, low failure rate and reduced maintenance costs compared with diesel power, which reduces overall operating cost
  • Max Working Height (Indoor/Outdoor) 18.2M
  • Max Platform Height (Indoor/Outdoor) 16.2M
  • Horizontal Platform Extension 1.5M / 1.2M
  • Length-Stowed (Outriggers/Without Outriggers) 4.88M
  • Width-Stowed 2.28M
  • Height-Stowed (Rails Folded) 2.44M
  • Height-Stowed (Rails Unfolded) 3.21M
  • Wheelbase 2.84M
  • Ground Clearance 0.36M
  • Platform Size (6.5M platform) (L×W×H) 3.96M×1.82M×1.1M
  • Platform Size (7.4M platform) (L×W×H) 4.84M×1.82M×1.1M
  • Platform Capacity 680kg
  • Extension Platform Capacity 227kg
  • Max Platform Occupants (Indoor/Outdoor) 4 Persons
  • Drive Speed (Stowed) 0~5.3 km/h
  • Drive Speed (Raised) 0~1.1 km/h
  • Lift Time (Unloaded) 70 s~90 s
  • Lower Time (Unloaded) 45 s~55 s
  • Gradeability 40%
  • Tilt rating (front-to-back) 3o
  • Tilt rating (side-to-side Outrigger Retraced/Extend) 2o / 0.8o
  • Max Outrigger Levelling (Front-to-back) 7o
  • Max Outrigger Levelling (Side-to-side) 12o
  • Turning Radius (Inside/Outside) 2.2M / 5.3M
  • Tire Size/Type 33 x 12-20 / solid
  • Drive × Steer 4WD×2WS
  • Hydraulic Tank Capacity 110L
  • Battery 48 V, 480 Ah (lead acid battery)
  • System Voltage 12V DC
  • Weight (Outriggers/Without Outriggers): 9,250kg
  • Forklift pockets and lifting points
  • Proportional control
  • Manual storage box
  • Flashing beacon
  • Emergency stop
  • Emergency lowering system
  • Electrophoretic painting
  • Tilt protection system
  • Foldable guardrail
  • Non-marking tyres
  • Track unit connector
  • Overload sensing system
  • Fault diagnosis system
  • White noise alarm
  • Drivable at full height
  • Oscillating axle
  • Pipe rack ready

Options & Accessories

  • AC power to platform
  • Battery isolator
  • Platform working light
  • EQSS/Protector
  • Pipe racks

Each elevated work platform comes with an impressive factory warranty and a comprehensive After Sales Support programme supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
