Sinoboom 6.5M 880kg Electric Scissor Lift
Sinoboom 880kg electric scissor lift with 6.5M working height and 240kg capacity

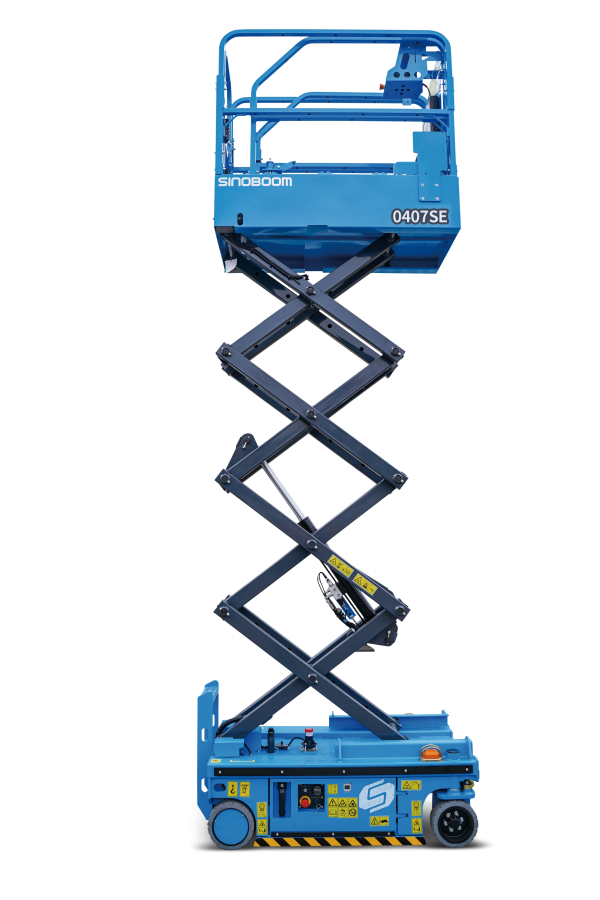

The Sinoboom 0407SE Scissor Lift is a versatile, reliable, and efficient aerial work platform designed to meet the demands of various industries. With its compact size, working height of 6.5M, weight of 880kg and width of only 0.76 meters, the 0407SE can easily navigate through tight spaces and narrow aisles with a zero-turn radius and a load capacity of up to 240 kg.
Perfect for facility maintenance, HVAC servicing, and cleaning. Efficiently handle warehousing tasks like inventory management, stock picking, and shelf restocking.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Specifications
Weight | 880kg |
Working Height | Indoor 6.5M / Outdoor 5.8M |
Platform Capacity | 240kg |
Power | Electric 24 V / 2.2kW |
Platform Size | 1.34M×0.7M×1.1M |
Gradability | 25% |
Drive Type | 24V DC / 0.4 kW |
Features
- Easily passes through standard doors and can access elevators
- The short design of sliding rail makes debris easy to clean
- Bumper rail and indented sliding rail designed for anti-scratch
- DC motor drive, giving longer run time
- Max Working Height (Indoor/Outdoor) 6.5M / 5.8M
- Max Platform Height (Indoor/Outdoor) 4.5M / 3.8M
- Platform Extension 0.6M
- Length-Stowed 1.42M
- Width-Stowed 0.76M
- Height-Stowed (Rails Folded) 1.67M
- Height-Stowed (Rails Unfolded) 1.97M
- Wheelbase 1.11M
- Ground Clearance (Pothole Guard Stowed) 0.061M
- Ground Clearance (Pothole Guard Deployed) 0.02M
- Platform Size (L×W×H) 1.34M×0.7M×1.1M
- Platform Capacity 240kg
- Extension Platform Capacity 115kg
- Max Platform Occupants (Indoor/Outdoor) 2 Persons/1 Persons
- Drive Speed (Stowed) 0~4 km/h
- Drive Speed (Raised) 0~0.8 km/h
- Lift Time (Unloaded) 20 s~23 s
- Lower Time (Unloaded) 25 s~27 s
- Gradeability 25%
- Allowable Inclination (front-to-back/side-to-side) 3o / 1.5°
- Turning Radius (Inside/Outside) 0.3M / 1.35M
- Tyre Size/Type 255 x 76mm / solid
- Drive × Steer 2WD×2WS
- Power Source 24V / 2.2kW
- Drive Motor 24V DC / 0.4 kW
- Hydraulic Tank Capacity 4L
- Battery 24 V, 120 Ah (lead acid battery)
- Charger (Input/Output) 100-240V AC / 15A
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency lowering system
- Emergency stop
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track ready connector
- Overload sensing system
- Fault diagnosis system
- White noise alarm
- Drivable at full height
- Maintenance-free battery
- Automatic pothole protection
- Bumper rails
- Auto braking system
Options & Accessories
- RCBO
- AC power to platform
- Battery isolator
- EQSS/Protector
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
