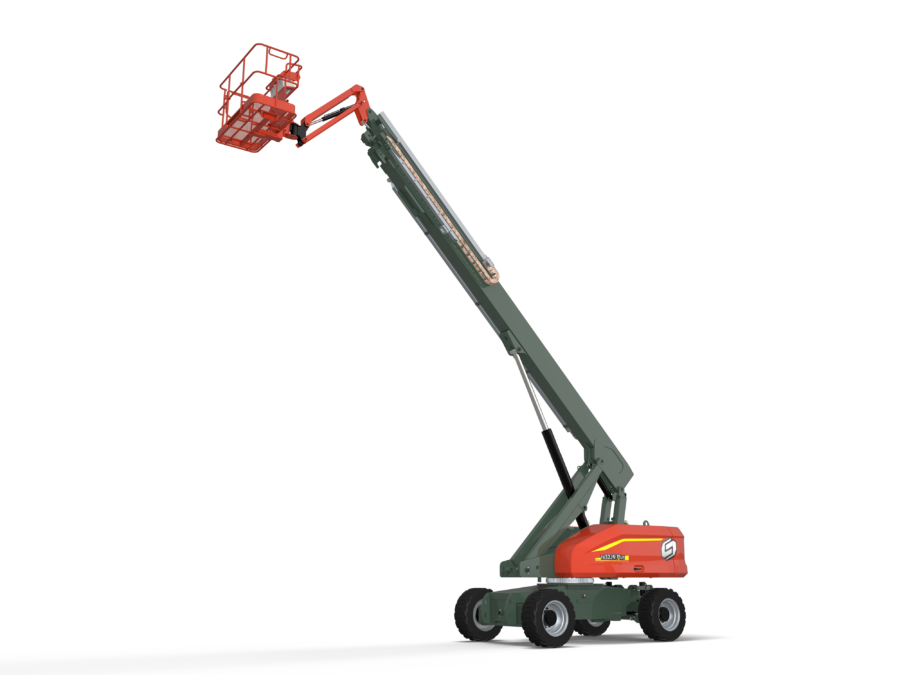

Sinoboom 34.3M 17,460kg Diesel Rough Terrain Telescopic Boom Lift
With a maximum working height of 34.3M the TB32JN PLUS diesel-powered Sinoboom telescopic boom lift has a extra basket capacity of up to 454kg (restricted) and a machine weight of 17460kg
The TB32JN PlUS offers an impressive working height of 34.3M and a maximum outreach of 17.9M at 454kg / 20M at 300kg, making it ideal for reaching high and distant work areas efficiently. Built with heavy-duty components and a robust structure, it is designed to withstand demanding job site conditions, ensuring longevity and reliability while multipe safety features proritise operator safety.
Verstaile functionality is achieved with the 180-degree job swing and the 160-degree platform rotation allows operators to maneouvre around obstacles with ease. 45% gradeability and 4WD capability enable access to rough and difficult to access terrain.
Perfect for building maintenance, industrial applications, construction sites, telecommunications and utility work, stadiums and arenas, shipyards and ports, warehouses and distribution centres, bridges and infrastructure projects.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft. Click here for more information.
Specifications
| Weight | 17460kg |
| Working Height | 34.3M |
| Platform Capacity (Restricted / Unrestricted) | 454 kg / 300kg |
| Power | Cummins QSF2.8t3TC72 54 kW |
| Horizontal Reach max (Restricted / Unrestricted) | 17.9M / 20M |
Features
- Extra capacity of 454kg at restricted height and reach
- Industry leading 7” screen displays faults and status information for easy reference, remote guidance and live machine and maintenance information.
- 3 proportional handles beneficial for gradual control of boom lifting, telescoping, turntable rotation and driving speed
- Max Working Height 34.3 m
- Max Platform Height 32.3 m
- Max Horizontal Reach (restricted / unrestricted) 17.9 m / 20 m
- Length-Stowed 12.76 m
- Width-Stowed 2.49 m
- Height-Stowed 2.88 m
- Wheelbase 3.0 m
- Ground Clearance 0.46m
- Platform Size (L×W×H) 2.44 m×0.91 m×1.1 m
- Capacity (Restricted / Unrestricted) 454 kg / 300kg
- Max Platform Occupants 3 Persons / 2 Persons
- Drive Speed (Stowed) 0～4.8 km/h
- Drive Speed (Raised) 0～1.1 km/h
- Gradeability 45%
- Turntable Rotation 360o continuous
- Platform Rotation 160o
- Tilt Rating 5°
- Turning Radius (Inside/Outside) 3.65 m/6.91 m
- Turntable tail swing 1.45 m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 385/65D22.5/foam filled
- Drive × Steer 4WD×2WS
- Hydraulic Tank Capacity 180L
- Cummins QSF2.8t3TC72 54 kW
- Fuel Tank Capacity 140L
- System Voltage 12V DC
- 4 WD × 2 WS
- Hydraulic Platform Levelling
- Proportional control with 3 joysticks
- Tilt protection system
- Flashing beacon
- Non-marking tyres
- 7-in display screen
- Automotive-grade sleeves for all pipes
- Max tilt rating to 5o
- White noise alarm
- Telematics-ready connector
- Battery isolator
- Active oscillating function
- 2.44 m platform with swinging gate
- Weighing system
- Half mesh (for platform swinging gate)
- Manual storage box
- 160 degree platform rotation
- Secondary guarding device
Options & Accessories
- AC power to platform
- Platform work light
- 1.83 m work platform
- Glazier kit (for platform with swinging gate)
