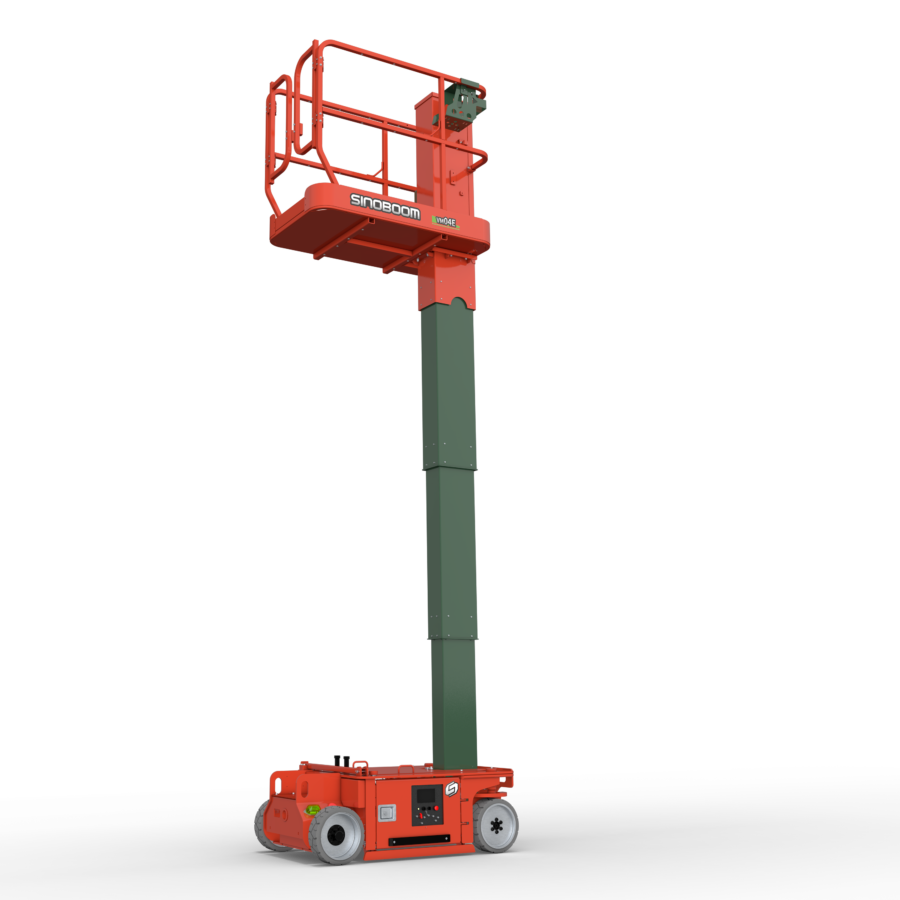

Sinoboom 5.8M 785kg Electric Vertical Mast Lift

Compact design & narrow footprint for indoor tasks

VM04E

The Sinoboom VM04E is a 5.8M electrical vertical mast lift designed for indoor use. Weighing just 785kg, it is lightweight, compact and highly manoeuvrable, making it ideal for warehouses, retail stores and manufacturing facilities. This lift features 227kg capacity supporting 2 operators, has a narrow footprint and supports a 24V AGM maintenance-free batteries for long-lasting eco-friendly performance.

Contact us today to request a quote, or schedule a demo.

Specifications

Working Height5.8M (indoor use only
Weight785kg
Platform Capacity227kg
Power24 V, 120 Ah (Lead Acid AGM Battery)
Platform size (L×W×H) 1.35M×0.76M×1.1M
Gradeability25%
Drive Type2WD x 2WS

Features

  • Front wheel drive offers a small turning radius and anti-skid
  • Automatic pothole protection system for increased ground clearance
  • Double fully-open door design on chassis for easier access to all components
  • Mast is same height as guardrails for easy and comfortable operation in the platform
  • Max Working Height (indoor only) 5.8 m
  • Max Platform Height (indoor only) 3.8 m
  • Length-Stowed 1.38 m
  • Width-Stowed 0.78 m
  • Height-Stowed 1.66 m
  • Wheelbase 1.06 m
  • Ground Clearance (Pothole Guard Stowed) 0.068m
  • Ground Clearance (Pothole Guard Deployed) 0.015m
  • Platform Size (L×W×H) 1.35 m×0.76 m×1.1 m
  • Capacity 227kg
  • Max Platform Occupants (Indoor only) 2 Persons
  • Drive Speed (Stowed) 0~4 km/h
  • Drive Speed (Raised) 0~2 km/h
  • Lift time (unloaded) 15~18 s
  • Lower time (unloaded) 12~17 s
  • Gradeability 25%
  • Max Allowable Inclination (front-to-back / side-to-side) 3° / 1.5°
  • Turning Radius (Inside/Outside) 0.14m/1.34 m
  • Tire Spec/Type 305 x 100/solid non-marking
  • Drive × Steer 2WD×2WS
  • Hydraulic Tank Capacity 6L
  • Power Source 24 v / 2.2 kW
  • Batteries 24 V 120 Ah (Lead Acid AGM Battery)
  • Charger (input/output) 100~240 V AC/15 A
  • 2 WD × 2 WS
  • Indoor use only
  • Proportional control
  • Tilt protection system
  • Flashing beacon
  • Non-marking tyres
  • Electrophoretic painting
  • Forklift pockets and lifting points
  • Fault diagnosis system
  • Drivable at full height
  • Automatic pothole protection
  • Manual storage box
  • Emergency lowering system
  • Overload sensing system
  • Emergency stop
  • Horn & Buzzer
  • Telematics-ready connector
  • Maintenance-free battery
  • Bumper rails
  • Cylinder mast system
  • Auto braking system

Options & Accessories

  • RCBO
  • AC power to platform
  • Secondary guarding device
  • Platform work light



Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
