Ammann 825kg Diesel Reversible Plate Compactor – 110kN (ACE)
Ammann 825kg Diesel Reversible Plate Compactor - compaction solutions for granular soils and asphalt

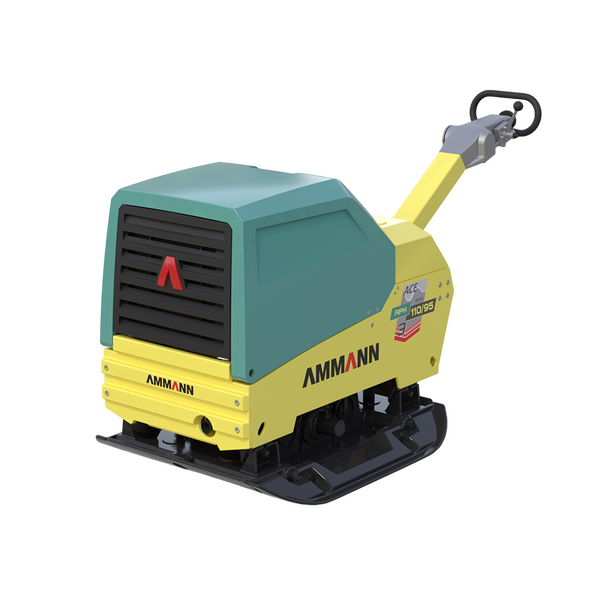

The APH 110/95 is the premier vibratory plate compactor in the Ammann lineup. At 825 kg (1830 lb), it is the heaviest plate available in the Ammann Range. Its dimensions and high compaction forces enable the APH 110/95 to equal the output of a 7 ton soil compactor. The vibratory plate features the Ammann triple-shaft exciter system that enables superior compaction and climbing ability while keeping the machine easy to handle.
Many other equipment options such as ACEecon are already built in the standard machine, making the APH 110-95 a machine for the toughest jobs.
Specifications
| Weight | 825kg |
| Plate (mm) | 520 x 650 (with extension plates 650 x 800/950) |
| Centrifugal Force | 110kN |
| Frequency | 2900vpm |
| Engine | Kubota Diesel D1105 |
Features
- Operating speed max 36m/min
- Orbital control
- Comes with ACE System
- Hydrostatic Drive
- Triple-shaft Exciter System
- Ergonomic handle bar
- Electric start and emergency stop
- Optional Operation Hour meter
- Optional extension plate (2 x 75mm & 2 x 150mm)
- Compass Compaction Meter as Option
- Three Year warranty*
