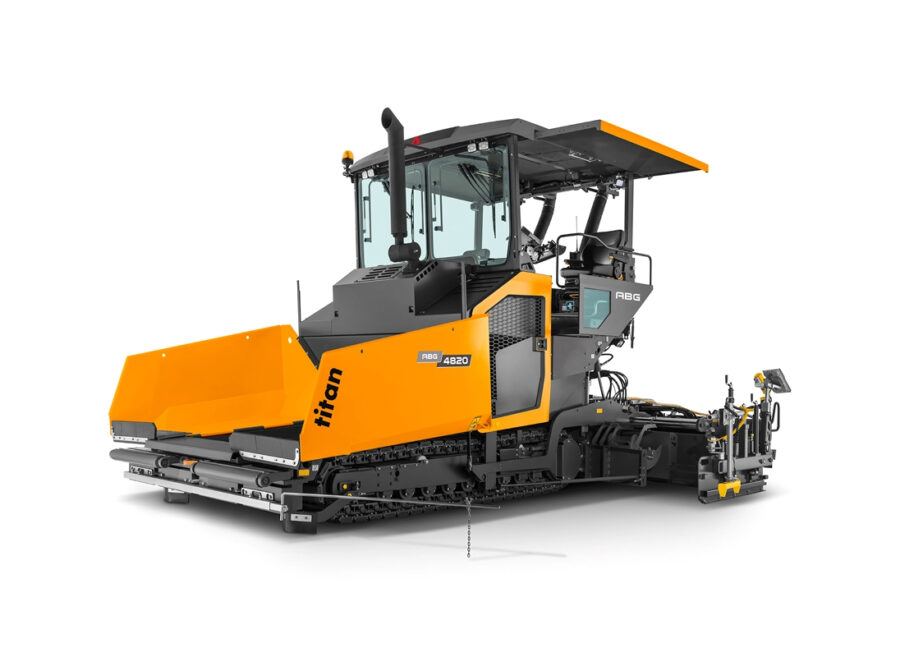

Ammann ABG Diesel 12.5 Ton Tracked Asphalt Paver – 6.5m max

The ABG 4820 is a multi-class paver ideal for urban projects, commercial developments and medium-scale highway projects.

AGB 4820

The Ammann ABG 4820 is a compact yet highly capable tracked paver designed for both urban roadworks and larger paving projects. With paving widths up to 6.5 metres and a production capacity of up to 500 tonnes per hour, it delivers excellent versatility, smooth mat quality, and efficient performance across a wide range of applications. Its advanced EPM3 control system, low operating noise, and intuitive operator interface help improve precision, productivity, and on-site communication.

Built for reliability and low operating costs, the ABG 4820 features fuel-efficient engine technology, adaptive Eco Mode for reduced fuel consumption, and durable components designed for long service life. The machine also offers easy maintenance access, advanced telematics, and industry-leading screed technology that ensures consistent paving results and fast heat-up times. Its compact transport-friendly design makes it an ideal solution for contractors seeking performance, efficiency, and flexibility in one machine.

Specifications

Weight12470 kg
Operating weight15998 kg (includes standard screed)
Machine width2532 mm
EngineVolvo (Deutz) D4J 129hp Diesel

Features

  • Electronic Paver Management (EMP 3)
  • Engine: Volvo (Deutz) 129hp Diesel
  • Basic Paving width 2.5m
  • Max paving width 6.6m
  • Paving Output 500t/hr
  • Fuel Tank 180L
  • Electronic drive control
  • Lifetime lubricated crawler track rollers
  • Forged and hardened crawler track links
  • Automatic track tensioner
  • Bolt on rubber pads
  • Large truck push rollers with 160 mm Ø
  • Four individual hydrostatic drives for conveyors and augers
