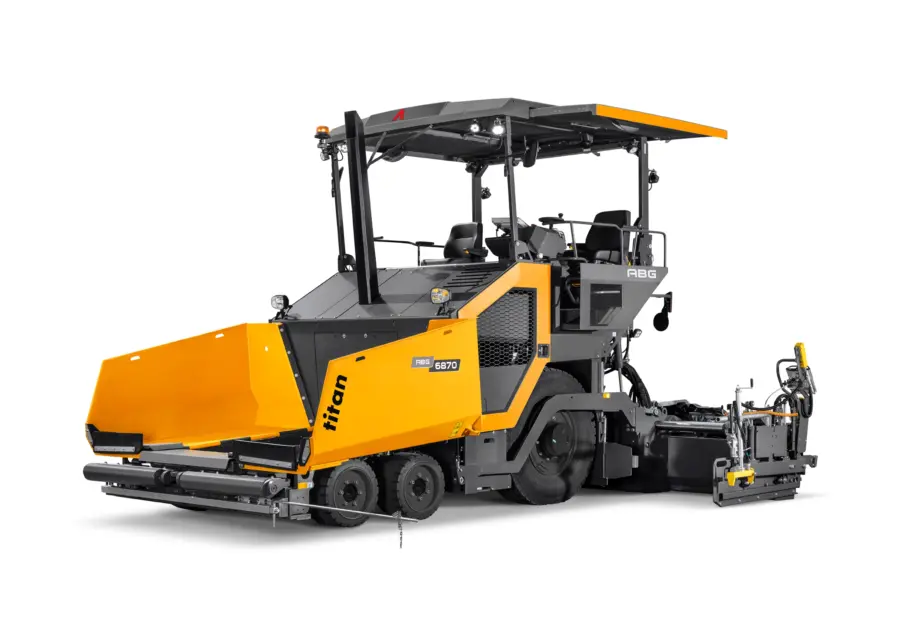

Ammann ABG Diesel 14.3 Ton Wheeled Asphalt Paver – 9m max

Ideal applications for the multi-class ABG 6870 paver include highways, arterial roads, airports and industrial yards

AGB 6870

The Ammann ABG 6870 is a high-performance wheeled asphalt paver engineered for productivity, manoeuvrability, and exceptional paving quality across demanding road construction projects. With paving widths up to 9 metres and a production capacity of up to 700 tonnes per hour, the ABG 6870 delivers efficient material flow, smooth mat quality, and excellent traction, even on challenging terrain. Its advanced EPM3 operating system, active steering, and load-dependent drive system provides precise control, improved operator comfort, and increased jobsite efficiency.

The wheeled design offers superior mobility and fast travel speeds between sites, making it particularly effective for projects requiring both high output and manoeuvrability. Its versatile screed options and reliable performance make the ABG 6870 well suited for base, binder, and surface course paving applications including commercial developments and large-scale civil infrastructure projects

Specifications

Weight14300 kg
Operating weight17900 kg (includes standard screed)
Machine width2548 mm
EngineVolvo (Deutz) D6J 175hp Diesel

Features

  • Electronic Paver Management (EMP 3)
  • Engine: Volvo (Deutz) D6J 175hp Diesel
  • Basic Paving width 2.5m
  • Max paving width 9m
  • Paving Output 700t/hr
  • Fuel Tank 200L
  • Electronic drive control
  • Independent rear wheel drives
  • Driven front axle 2×4
  • Hydraulic ride levellers
  • Load dependent efficient drive system
  • Active steering
  • Rear wheels with ballast
