ARS220 Heavy Single Drum Roller

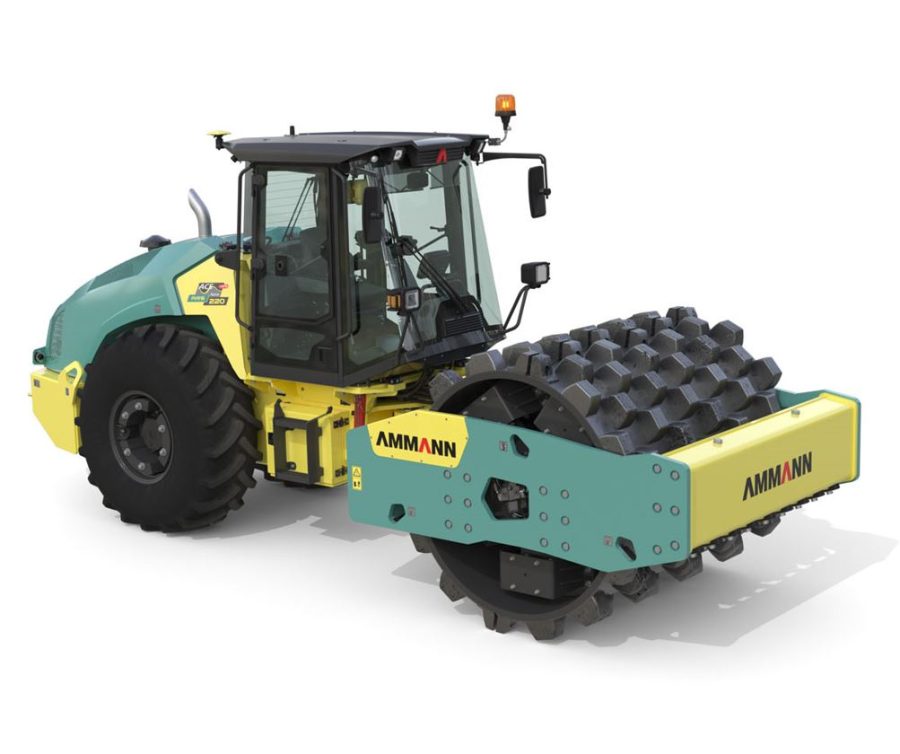

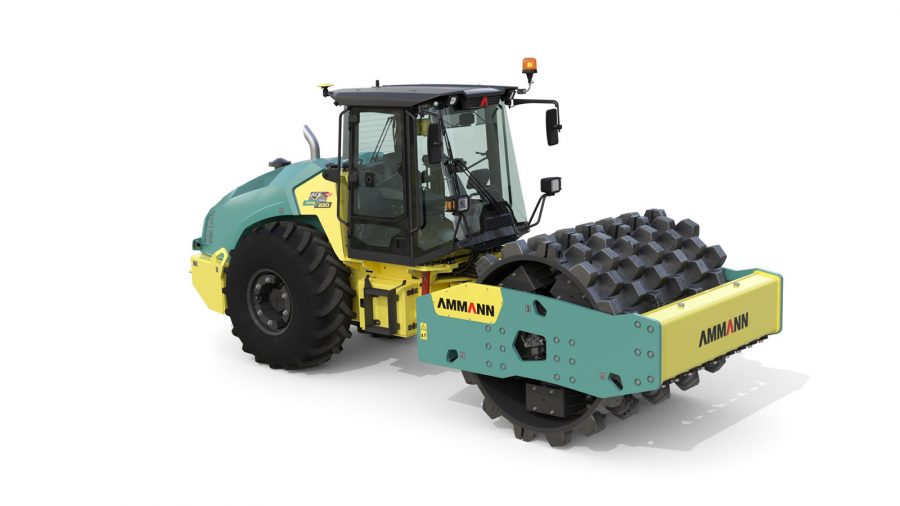

The Ammann ARS220 22 ton Heavy Single Drum Roller is a soil compactor with a compaction system developed to optimum compaction result


Ammann provides industry-leading compaction output while defining new highest standards in efficiency and cost saving through the ARS 220 22 ton Soil Compactor.

The machines meet EU Stage IIIA / U.S. EPA Tier 3 emissions standards. The machines also meet the highest operator standards, with intuitive control via a centralized multifunctional display built into the steering wheel. A wide range of compaction tools such as the ACEforce system help operators monitor indications of compaction.

Pad foot shells standard in New Zealand for all models.


Weight21930 kg
Drum width2130mm
Centrifugal Force I/II275-375 kN / 233-300 kN
Frequency I/II23-27 Hz / 30-34 Hz


  • Operation weight 25050kg
  • Power by Deutz TCD6.1 L6
  • Full side clearance right and left
  • Road lighting and rotating light
  • Twin frequency and Twibn amplitude
  • Independent vibratory pump for each drum
  • Spacious, comfortable and quiet ROPS cab with aircon and stereo
  • Single-drive pump for reduced maintenance
  • Ammann CANBUS control system with Telematics
  • Reverse alarm
  • Pressurised sprinkler system
