46″ HHNG5 Ride-On Powerfloat

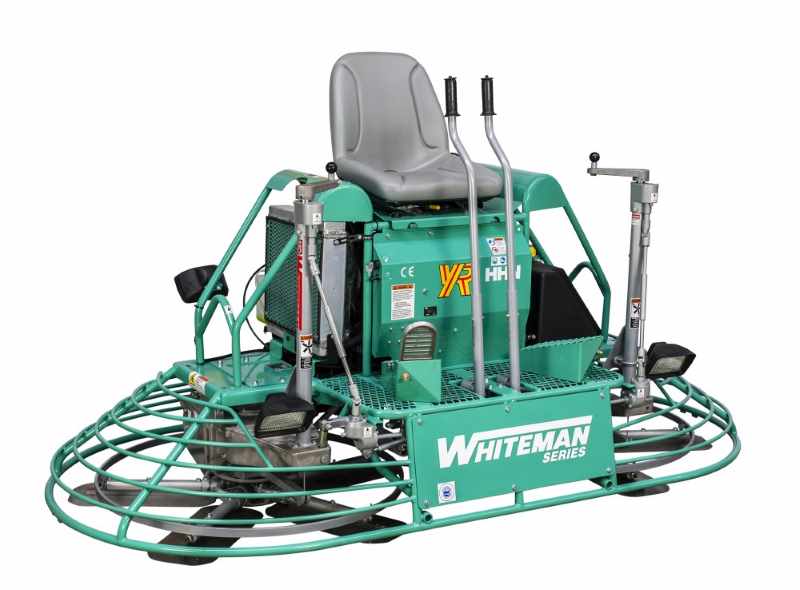

Multiquip HHNG5 is a non-overlapping twin 46-inch (1168 mm) ride-on concrete trowel


The HHNG5 mechanical ride-on power trowel is powered by a 35 HP Briggs and Stratton Vanguard Air Cooled V-Twin engine that includes several new features that raise the performance bar.


RotorsTwin 16" / 1160mm non-overlapping
Blade speed0-180 rpm
Path width2236mm
EngineBriggs & Stratton 35hp


  • 35 HP Briggs and Stratton Vanguard air cooled V-twin engine meets EPA Phase 3 standards
  • Continuously variable transmission (CVT) provides superior performance by continually adjusting the drive ratio to obtain optimum torque and speed during all phases of finishing from low speed high torque to high speed burnishing
  • Automotive constant velocity joints ensures smooth and consistent
    power is being transferred to the gearboxes
  • Helical gearboxes are the industry’s most efficient, coolest
    running trouble free design
  • TwinPitch control enables the operator to simultaneously control the pitch of both rotors with minimal effort, yet still allows for individual pitch contro
