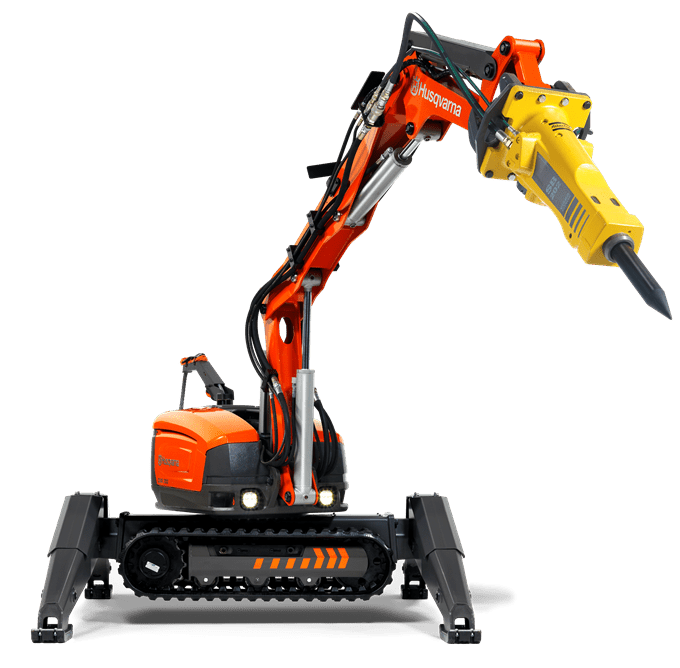

DXR305 Demolition Robot

Husqvarna DXR 305 is our most powerful remote-controlled demolition robot. With an impressive 27 kW power and only 78cm wide it fits through all normal doorways.

DXR305

This unique combination of power and the ability to fit through a normal doorway opens up a very wide application window. The arm delivers long reach, precise positioning of the tool and requires minimal servicing. The outriggers are individually controlled and combined with a large footprint providing superior stability which enables high workload. The robust DXR 305 is a versatile demolition robot for both the construction and process industry. Combine it with a variety of tools like hammers or our compact and versatile crushers and steel shearer.

For the toughest applications we recommend our additional feature packages. For DXR 305 we offer cylinder protection, enhanced cooling and heat protection. This enables you to work with the machine in high ambient temperatures and with the tool in a high radiation heat. The packages can be ordered as accessories or installed direct from the factory.

Specifications

Forward Reach4.9M
Horizontal Reach5.2M
Power27 kW
Weight1960 kg

Features

  • Product Size length: 2.827 M
  • Product Size width: 780 mm
  • Product Size height: 1.367 M
  • Oil capacity: 42L
  • Hydraulic oil flow: 85 L/min
  • Hydraulic pressure max: 250 bar
  • Range of wireless transmission – up to 300M
