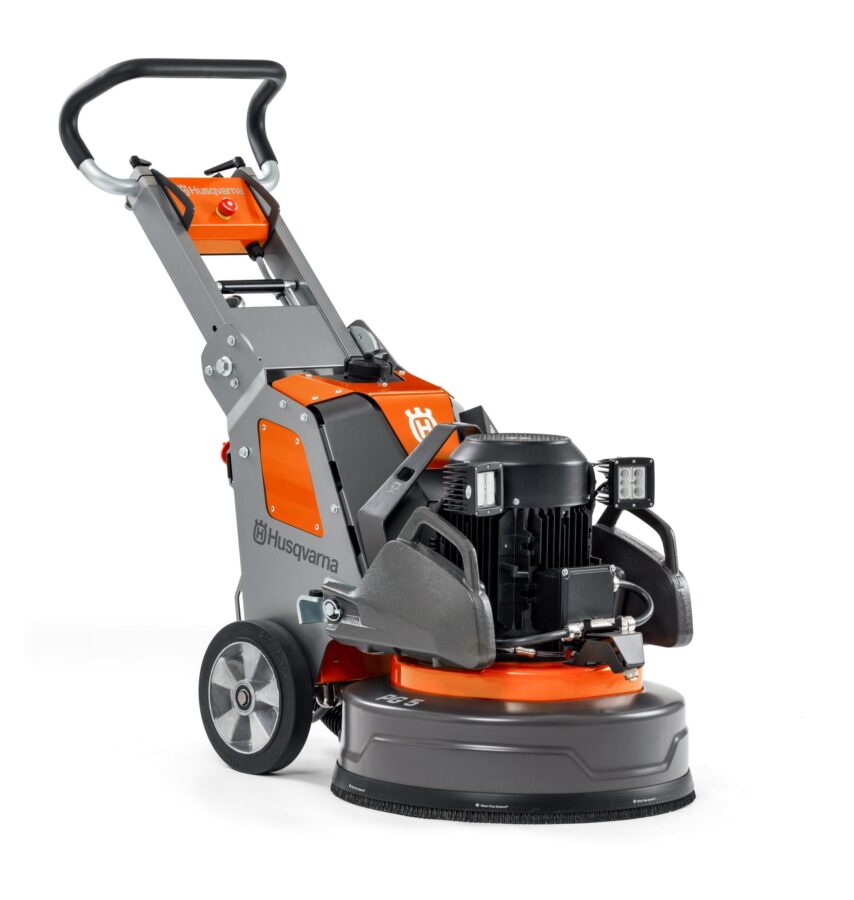

PG 5 Planetary Head Grinder
PG 5 515mm wide powerful planetary grinder suitable for removing floor coatings, grinding and polishing concrete or natural stone
The PG 5 4 kW is a three phase, compact and versatile planetary floor grinder, perfect for smaller jobs. It combines a smart compact design for easy transportation as the chassis can easily be separated from the frinding head and the weights dismounted prior to transport – fits into most standard vehicles. Real work-horse performance and sheer grinding power. It’s easy to handle, tilt and operate with optional water kit. Suitable for all applications: floor prep, grinding and polishing. The PG 5 is the compact choice for the Superfloor™ concrete polishing system. To maximise reliability and reduce maintenance, the vital components of the PG 5 are protected against dust and slurry inside the hermetically sealed grinding head and electrical cabinet.
Specifications
| Rated input power | 4 kW |
| Phases | 3 |
| Grinding disc diameter | 230mm |

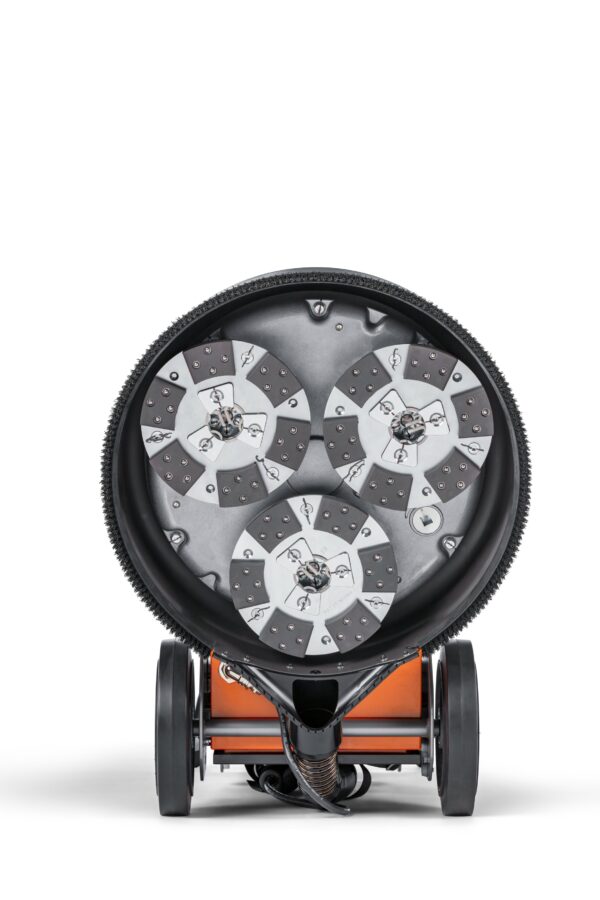

| Number of grinding discs | 3 |
Features
- Triple-headed grinder with more downward pressure and power can be delivered to grinding heads. More stable operation over undulating surfaces.
- FWD / REV operation with variable speed control.
- Long machinery service life thanks to the 5-way sealing mechanism.

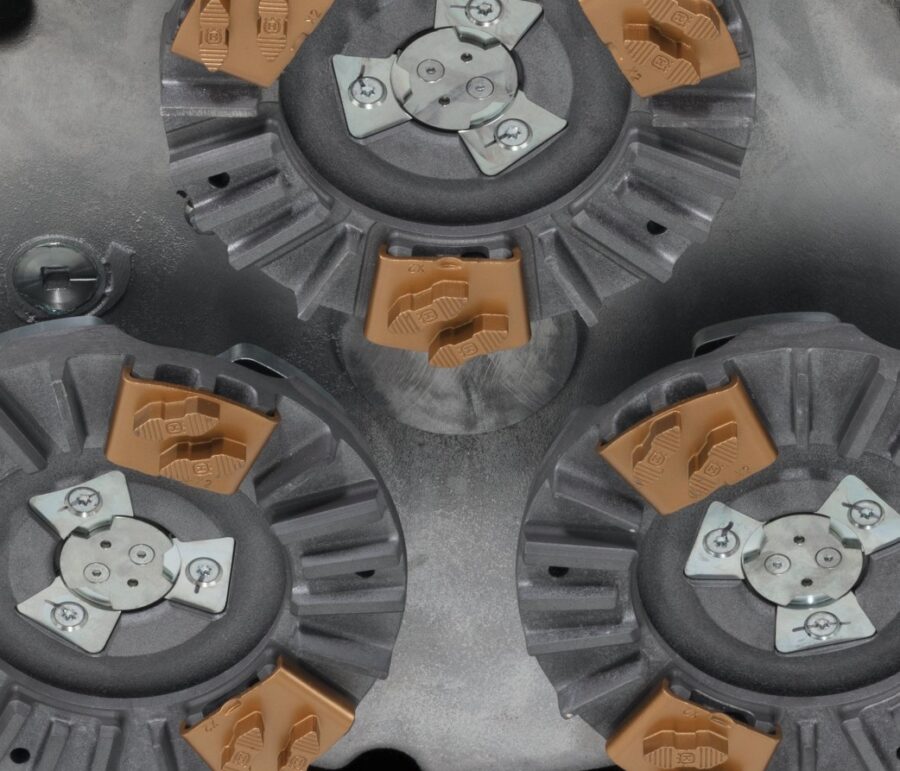

- Gear-driven planetary head; premium quality belt for powering grinding heads.
- Higher removal rate with mist cooler system. which cools the diamind tools
- Magnestic LED lights
- Adjustable grinding pressure
- Ergonomic handle
- Ease of manoeuvrability and enhanced operator control.
- Product size length 907 mm
- Product size width 562 mm
- Product size height 721 mm
- Weight: 183 kg
- Grinding Disc speed min: 420 rpm
- Grinding Disc speed max: 1,176 rpm
- Grinding pressure max. 369kg
- Optional: LED lights, water kit, remote-control harness
- Grinding Disc speed min: 353 rpm
- Grinding Disc speed max: 1,176 rpm
- Grinding pressure max. 125kg
