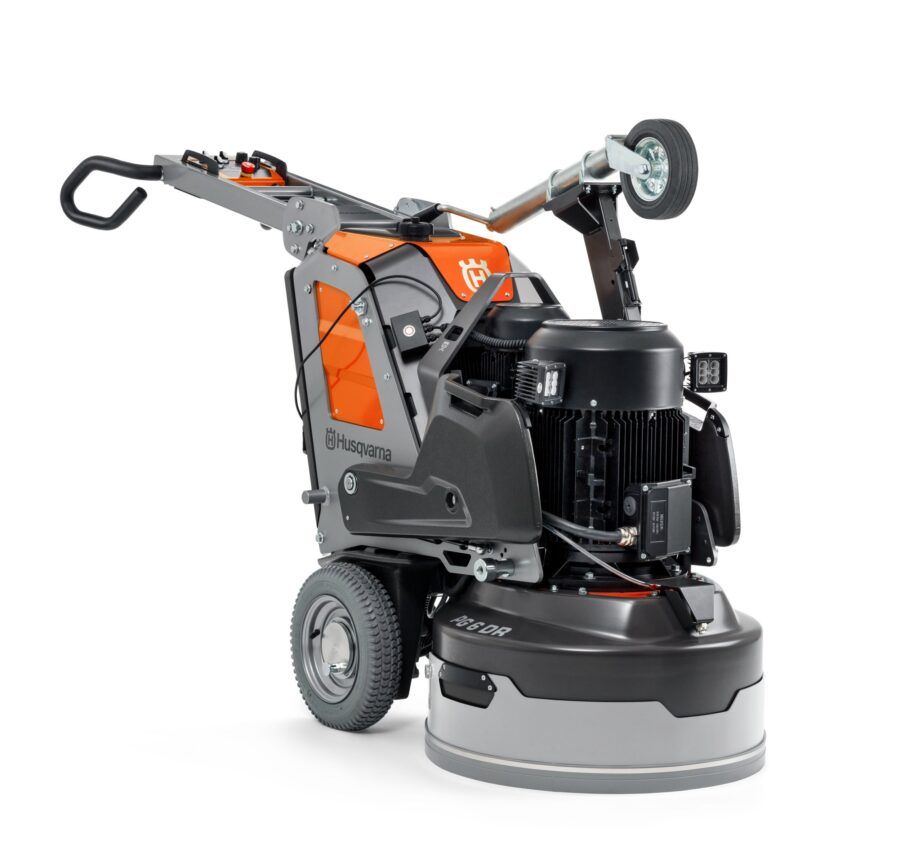

PG 6 DR Planetary Head Grinder
Husqvarna PG 6 DR 640mm wide, remote-controlled is an excellent choice for grinding and polishing concrete floors and stone floors
The PG 6 DR is a powerful remote-controlled planetary floor grinder with Dual Drive Technology™. This feature lets you adjust the grinding discs’ rotation speed and direction independently of the drum. The machine is suitable for all applications, from preparing to grinding and polishing concrete and stone floors. The mist cooler system cools the diamond tools, significantly increasing the removal rate and reducing the risk of glazing the tools (compared with not using the mist cooler system). If needed, the integrated adjustable weights can be used to increase grinding pressure and productivity.
The all-new remote control enables a precise operation and gives the operator control of important grinding parameters like real-time power consumption, incoming current, motor rpms and more. Ergonomic features like the integrated transport wheel make handling the machine easier before and after grinding.
Specifications
| Rated input power | 12.5 kW |
| Phases | 3 |
| Grinding disc diameter | 270mm |
| Number of grinding discs | 3 |
Features
- Grinding width: 640mm
- Weight: 591 kg
- An excellent machine with power and a versatile size.
- At 640mm it will fit through a standard door making it accessable to most projects.
- Dual Drive Technology, makes it possible to adjust the grinding discs’ rotation speed and direction independently of the drum. This enables higher production rates.

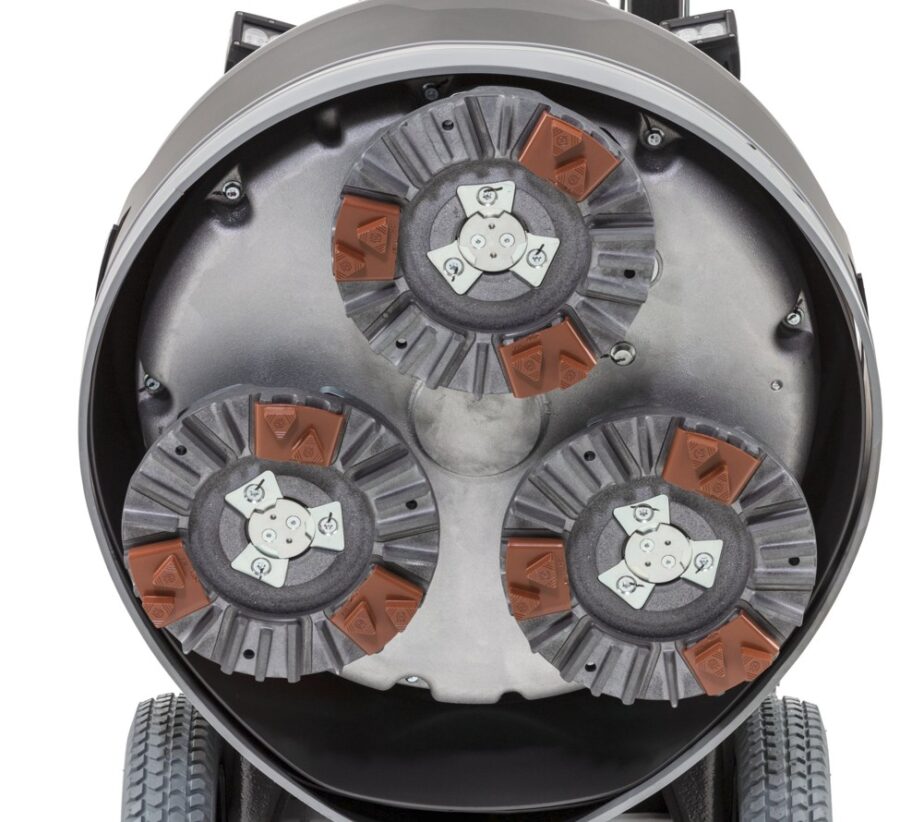

- Triple-headed grinder at 270mm – more downward pressure and power can be delivered to grinding heads. More stable operation over undulating surfaces.
- Market-leading power-to-weight ratio.
- High grinding pressure means a high removal rate.
- The mist cooler system sprays a fine mist on the floor, which cools the diamond tools
- The unit delivers an improved driving experience, thanks to the joystick controls’ fast and precise response.
- The large anti-glare screen provides real-time information including power consumption, incoming current and motor rpms.
- Sealed grinding head with 1000 hrs service interval. This prevents dust or water to intrude and damage components.
- Product size length 1271 mm
- Product size width 678 mm
- Product size height 1142 mm
- Grinding Disc speed min: 441 rpm
- Grinding Disc speed max: 1,176 rpm
- Grinding pressure max. 330kg
