PG 6 XR Planetary Head Grinder
Husqvarna PG 6 XR 600mm wide, 4 disc head, remote-controlled is an excellent choice for grinding and polishing concrete floors and stone floors
The PG 6 XR is a powerful remote-controlled planetary floor grinder with four grinding discs. The four-disc technology, which involves two pairs of grinding discs rotating in opposite directions, makes the PG 6 XR both well balanced and highly efficient. It is suitable for all applications, from preparing to grinding and polishing concrete and stone floors. And because it runs on 16 amperes, it is also a versatile choice for many environments. The mist cooler system cools the diamond tools, significantly increasing the removal rate and reducing the risk of glazing the tools (compared with not using the mist cooler system). If needed, the integrated adjustable weights can be used to increase grinding pressure and productivity.
The all-new remote control enables precise operation and gives the operator control of important grinding parameters like real-time power consumption, incoming current, motor rpms and more. Ergonomic features like the integrated transport wheel make handling the machine easier before and after grinding.
Specifications
| Rated input power | 7.5 kW |
| Phases | 3 |
| Grinding disc diameter | 230mm |
| Number of grinding discs | 4 |
Features
- Grinding width: 600mm
- Weight: 495 kg
- An excellent machine with power and a versatile size.
- At 600mm it will fit through a standard door making it accessable to most projects.

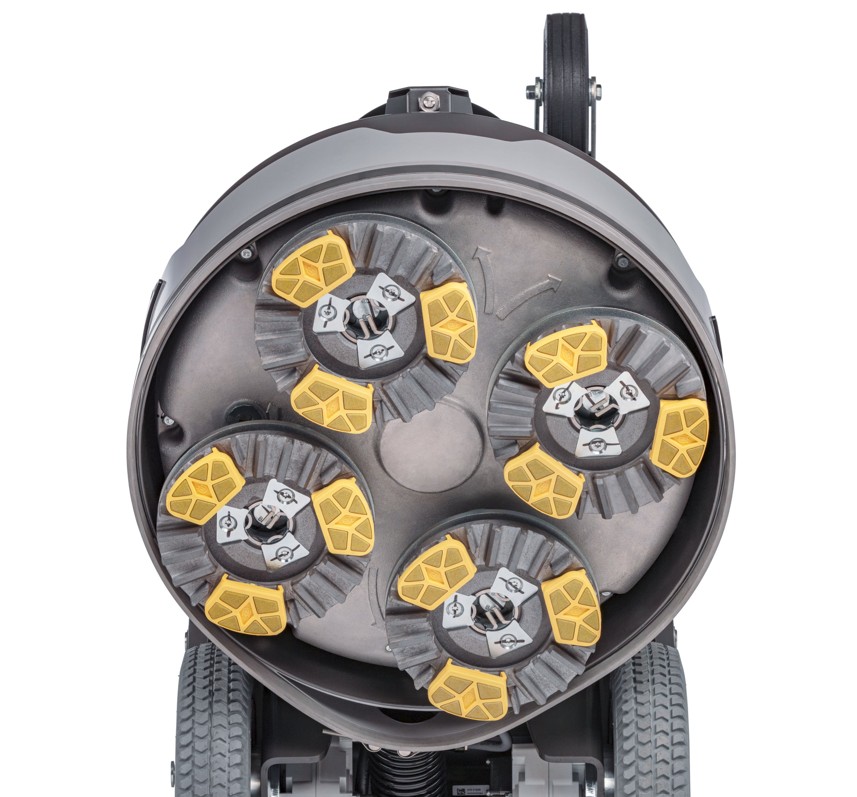

- Four-disc technology involves two pairs of grinding discs rotating in opposite directions for a well-balanced, highly efficient machine
- Adjusting the rpm is easy thanks to a single control knob. Because there are more grinding discs and diamonds working the substrate, this technology provides faster refinement and better tooling economy.
- Market-leading power-to-weight ratio.
- High grinding pressure means a high removal rate.
- The mist cooler system sprays a fine mist on the floor, which cools the diamond tools
- The unit delivers an improved driving experience, thanks to the joystick controls’ fast and precise response.
- The large anti-glare screen provides real-time information including power consumption, incoming current and motor rpms.
- Sealed grinding head with 1000 hrs service interval. This prevents dust or water to intrude and damage components.
- Product size length 1225 mm
- Product size width 638 mm
- Product size height 1142 mm
- Weight 495 kg
- Grinding Disc speed min: 441 rpm
- Grinding Disc speed max: 1,176 rpm
- Grindign pressure max. 264kg
- Optional: LED lights, water kit, remote-control harness
