PG 8 XR Planetary Head Grinder
Husqvarna PG 8 XR 800mm wide, 4 rotating disc, remote control concrete grinder with two pairs of grinding discs for a range of surface preparation and finishing tasks
The PG 8 XR is a powerful remote-controlled planetary floor grinder with four grinding discs. The four-disc technology, which involves two pairs of grinding discs rotating in opposite directions, makes the PG 8 XR both well balanced and highly efficient. The machine is an excellent choice for all applications, from preparing to grinding and polishing concrete and stone floors. The mist cooler system cools the diamond tools, significantly increasing the removal rate and reducing the risk of glazing the tools (compared with not using the mist cooler system). If needed, the integrated adjustable weights can be used to increase grinding pressure and productivity.
The all-new remote control enables precise operation and gives the operator control of important grinding parameters like real-time power consumption, incoming current, motor rpms and more. Ergonomic features like the integrated transport wheel make handling the machine easier before and after grinding.
Specifications
| Rated input power | 15 kW |
| Phases | 3 |
| Grinding disc diameter | 270mm |
| Number of grinding discs | 4 |
Features
- The ultimate choice for professional flooring contractors.
- Remote controlled

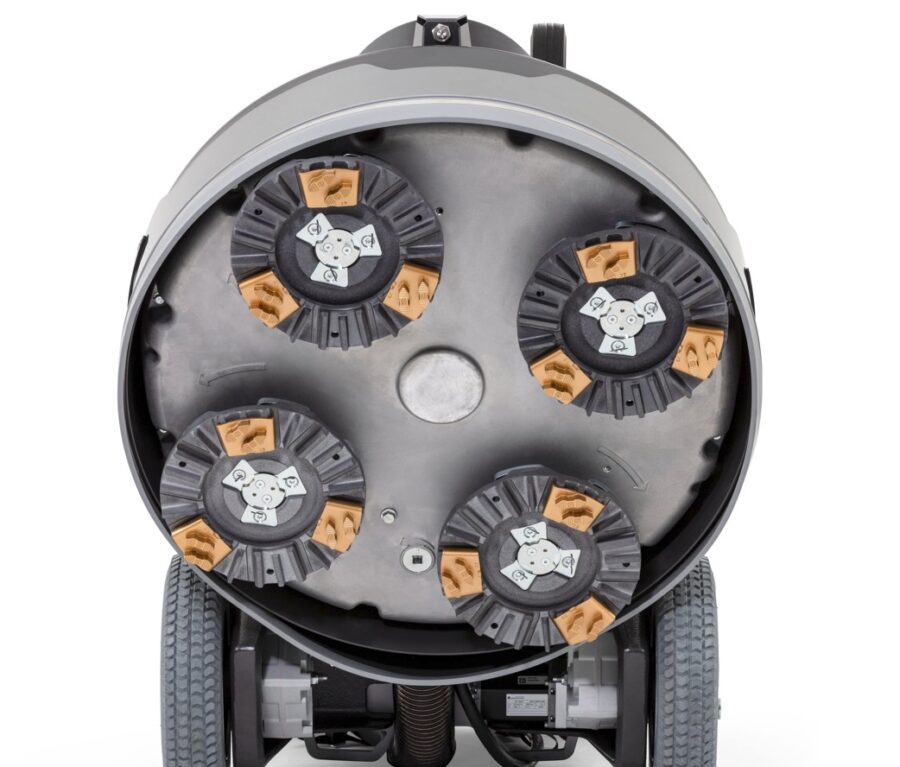

- Four-disc technology involves two pairs of grinding discs rotating in opposite directions for a well-balanced, highly efficient machine.
- Adjusting the rpm is easy thanks to a single control knob. Because there are more grinding discs and diamonds working the substrate, this technology provides faster refinement and better tooling economy.
- Wide grinding path.
- Oscillation function for flatter floors
- Gear-driven planetary head; premium quality belt for powering grinding heads.
- The mist cooler system sprays a fine mist on the floor, which cools the diamond tools. This makes it possible to achieve a better cut, reduces the risk of glazing the tools, and significantly increases productivity.
- Grinding width 800 mm
- The unit delivers an improved driving experience, thanks to the joystick controls’ fast and precise response.
- The large anti-glare screen provides real-time information including power consumption, incoming current and motor rpms.
- Sealed grinding head with 1000 hrs service interval. This prevents dust or water to intrude and damage components.
- 15 kw
- Product size length 1353 mm
- Product size width 838 mm
- Product size height 1138 mm
- Weight 645 kg
- Grinding Disc speed min: 420 rpm
- Grinding Disc speed max: 1,176 rpm
- Grinding pressure max. 369kg
- Optional: LED lights, water kit, remote-control harness
