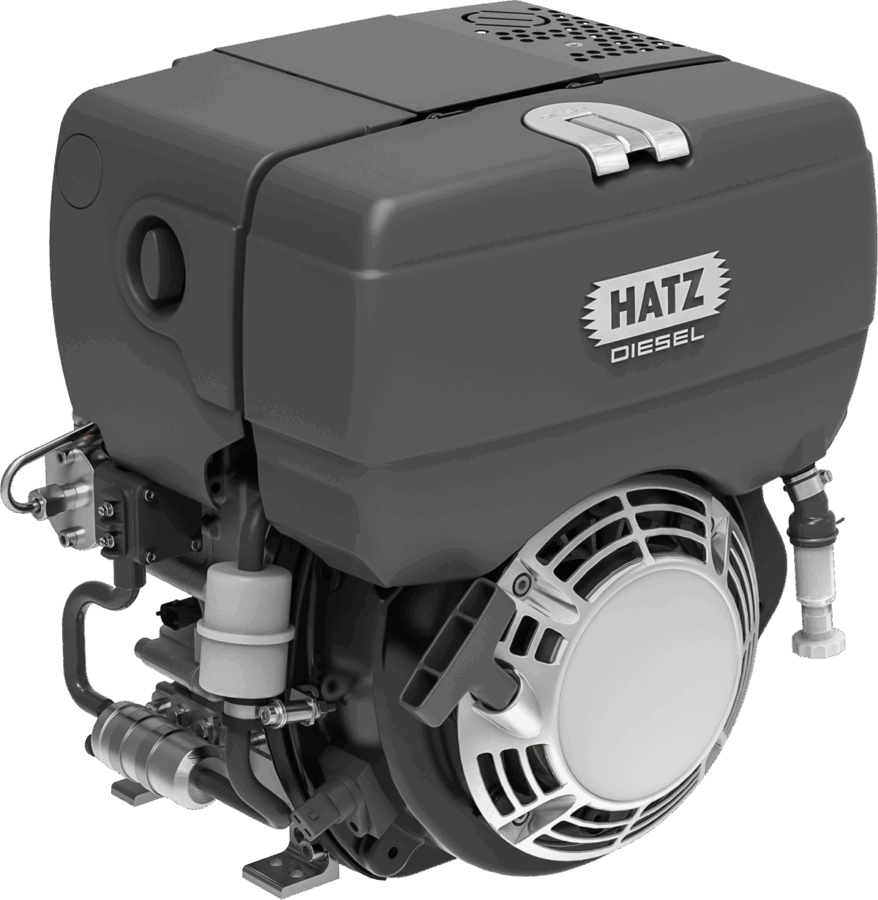

Hatz 1B30E – Single Cylinder Engine

Hatz 1B30E – Single Cylinder Engine

Hatz 1B30 single cylinder engine – 4.5 kW max max torque of 14.7 Nm

Hatz
1B30E

The Hatz 1B30E is an electric-start version of the proven 1B30 diesel engine, offering the same compact, air-cooled, single-cylinder 4-stroke performance with the added convenience of 12 V electric ignition. Engineered for durability and efficiency, the 1B30E provides reliable power for construction, agricultural, and industrial equipment where easy starting and consistent output are essential.

Enquire about this product ›

Specifications

Power 2.1-4.5 kW @ 3600 rpm
Max. torque 14.7 Nm

Features

  • Power Output: 2.1 – 4.5 kW @ 3600 rpm

  • Torque: 14.7 Nm

  • Displacement: 0.347 L (80 mm × 69 mm bore × stroke)

  • Engine Type: Air-cooled, 4-stroke diesel

  • Cylinders: 1

  • Compression Ratio: 21.5 : 1

  • Starting Options: 12 V electric start

  • Dry Weight: 40.8 kg

  • Emissions Compliance: EU Stage V / EPA Tier 4 equivalent
