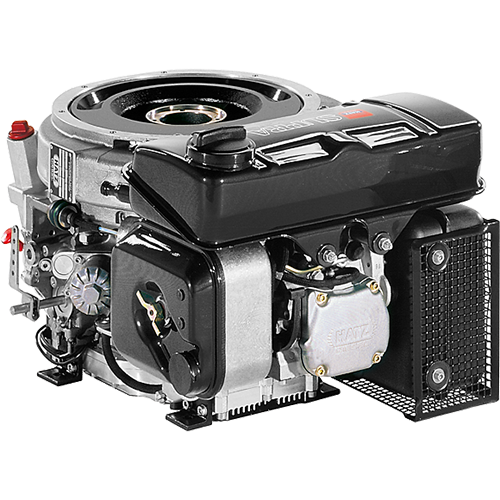

Hatz 1D90V – Single Cylinder Engine
Hatz 1D90V single cylinder engine – 11.2 kW max max torque of 40.7 Nm
The Hatz 1D90V is the vertical-shaft version of the most powerful single-cylinder diesel engine in the Hatz range. Built for extreme-duty applications where vertical installation is essential, the 1D90V combines the exceptional performance and reliability of the Hatz 1D90 with a vertically oriented crankshaft for specialized machinery. Offering up to 13.4 kW of output and 55 Nm of torque, this engine is ideal for high-torque, space-conscious applications in construction, industrial, and agricultural equipment.
The Hatz 1D90V is perfectly suited for heavy-duty vertical-shaft applications where compact power, high torque, and durability are essential, including: Vertical-drive construction equipment (e.g., walk-behind rollers, tampers), Agricultural machinery with vertical PTOs, Industrial pumps and compressors, Hydraulic systems requiring vertical engine integration, Stationary equipment with space or orientation constraints.
With its vertical design and class-leading power, the Hatz 1D90V brings unmatched performance and reliability to applications where conventional horizontal engines simply won’t fit.
Specifications
| Power | 6.4- 11.2 kW |
| Max. torque | 40.7 Nm |
Features
-
Power Output: 6.4 – 11.2 kW @ 3000 rpm
-
Torque: 40.7 Nm
-
Displacement: 0.722 L (104 mm × 85 mm bore × stroke)
-
Engine Type: Air-cooled, 4-stroke diesel
-
Cylinders: 1
-
Compression Ratio: 20.5:1
-
Crankshaft Orientation: Vertical shaft
-
Starting System: Crankhandle or optional 12 V electric start
-
Dry Weight: 98 kg / 106 kg (approx.)
-
Emissions Compliance: EU Stage V / EPA Tier 4 compliant
