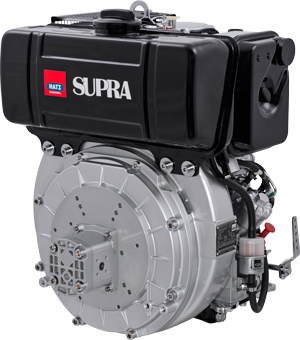

Hatz 1D90E – Single Cylinder Engine
Hatz 1D90E single cylinder engine – 10.8 kW max max torque of 39.3 Nm
The Hatz 1D90E is the electric-start version of the most powerful single-cylinder engine in the Hatz lineup. Delivering up to 13.4 kW of output and 55 Nm of torque, the 1D90E combines high-performance diesel power with the ease and reliability of a 12 V electric start system. Engineered for the most demanding applications across construction, agriculture, forestry, and industry, the 1D90E is designed to perform in extreme environments where uptime, durability, and quick starts are essential.
The Hatz 1D90 is ideal for equipment where high power and a reliable electric start are critical, including: Professional-grade construction equipment (e.g., rammers compactors and saws), Agricultural and forestry implements, High capacity hydraulic power units, Diesel generators and mobile power systems, Industrial pumps and compressors.
Specifications
| Power | 6.0 - 10.8 kW |
| Max. torque | 39.3 Nm |
Features
-
Power Output: 6.0 – 10.8 kW @ 3000 rpm
-
Torque: 39.3 Nm
-
Displacement: 0.722 L (104 mm × 85 mm bore × stroke)
-
Engine Type: Air-cooled, 4-stroke diesel
-
Cylinders: 1
-
Compression Ratio: 21.5:1
-
Starting System: 12 V electric start
-
Dry Weight: 106 kg (approx.)
-
Emissions Compliance: EU Stage V / EPA Tier 4 compliant
