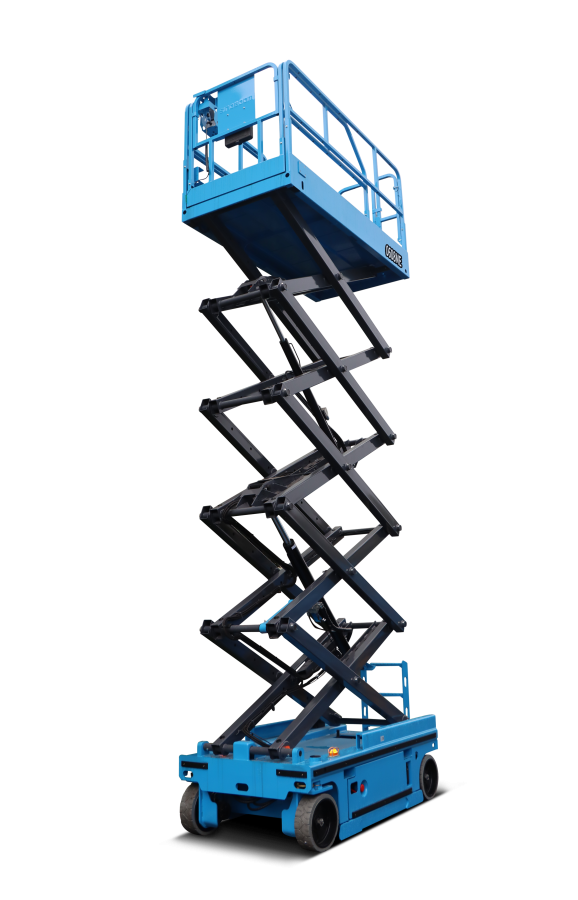

Sinoboom 7.8M 1,575kg Electric Scissor Lift
Sincobbom 0608ME electric scissor lift is suitable for both inside and outdoor use with zero emissions
With a maximum working height of 7.8M the 0608ME is suitable for both indoor and outdoor use with zero emmissons and is efficient with reduced maintenance costs. Rapid and convenient transportation with two-way forklift slots, and ownership costs are lowered with highly versatile parts. Get reliable performance with bumper rail protection and a load capacity of 230kg.
Ideal for factories, construction companies and warehouses with non-marking tyres, this scissor lift can also be used outdoors and is ideal for a hire company fleet addition.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Specifications
Weight | 1575kg |
Working Height | 7.8M |
Platform Capacity | 230kg |
Power | Electric 24 V / 2.2kW |
Platform Size (LxWxH) | 1.64M×0.76M×0.96M |
Gradability | 25% |
Drive Type | 2WD×2WS |
Features
- Higher work efficiency
- Environmental protection, zero emissions
- Rapid, convenient transport with two-way forklift slot
- Lower cost of ownership with highly versatile parts
- Max Working Height (Indoor/Outdoor) 7.8M
- Max Platform Height (Indoor/Outdoor) 5.8M
- Horizontal Platform Extension 0.9M
- Length-Stowed 1.8M
- Width-Stowed 0.81M
- Height-Stowed (Rails Folded) 1.88M
- Height-Stowed (Rails Unfolded) 2.0M
- Wheelbase 1.334M
- Ground Clearance (Pothole Guard Stowed) 0.075M
- Ground Clearance (Pothole Guard Deployed) 0.024M
- Platform Size (L×W×H) 1.64M×0.76M×0.96M
- Platform Capacity 230kg
- Extension Platform Capacity 120kg
- Max Platform Occupants (Indoor/Outdoor) 2 Persons/1 Persons
- Drive Speed (Stowed) 0~4 km/h
- Drive Speed (Raised) 0~0.8 km/h
- Lift Time (Unloaded) 15 s~20 s
- Lower Time (Unloaded) 25 s~30 s
- Gradeability 25%
- Allowable Inclination (front-to-back/side-to-side) 3o / 1.5°
- Turning Radius (Inside/Outside) 0.0M / 1.49M
- Tyre Size/Type 323 x 100mm / solid
- Drive × Steer 2WD×2WS
- Power Source 24V / 2.2kW
- Drive Motor 24V DC / 0.6 kW
- Hydraulic Tank Capacity 6L
- Battery 24 V, 220 Ah (lead acid battery)
- Charger (Input/Output) 100-240V AC / 30A
- Forklift pockets and lifting points
- Proportional control
- Manual storage box
- Flashing beacon
- Emergency stop
- Electrophoretic painting
- Tilt protection system
- Foldable guardrail
- Non-marking tyres
- Track ready connector
- Overload sensing system
- Fault diagnosis system
- White noise alarm
- Drivable at full height
- Maintenance-free battery
- Automatic pothole protection
- Bumper rails
Options & Accessories
- RCBO
- AC power to platform
- Battery isolator
- EQSS/Protector
- AC Drive Motor
- Platform work light
Each elevated work platform comes with an impressive factory warranty backed up with nationwide technical support and genuine spare parts. The comprehensive After Sales Support programme is supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
