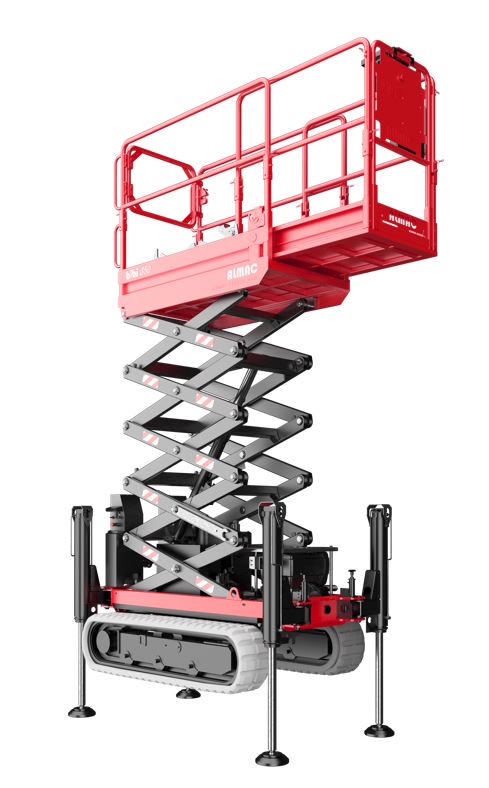

850 HE Tracked Scissor Lift

Athena 850 HE, unique bi-levelling, compact tracked scissor lift. Can fit through a single standard door with capacity of 250 kg and working height of 7.8M.


The Athena 850 HE is a unique bi-levelling, compact scissor lift designed with a multitude of applications in mind. For those requiring confidence and stability on slopes and the ability to go through a single standard door, the ATHENA HE is the ideal machine on site.
A platform capacity of a 250 kg and working height of 7.8 metres means that two people can get up and get to it… rain, hail or shine. Comes with stabilisers.


Weight1781 kg
Working height max.7.8M
Lift capacity250 kg
EngineHonda IGX390 Petrol Engine


  • 4.0 m Moving height
  • Automatic basket levelling
  • Longitudinal levelling front +/- 13 degrees
  • Longitudinal levelling rear +/- 14 degrees
  • Lateral levelling +/- 23 degrees
  • Gradeability 25 degrees
  • Side slope 21 degrees
  • Length: 2.14m
  • Compact and easily towable
  • Dual power source
  • Extendable and collapsible basket
