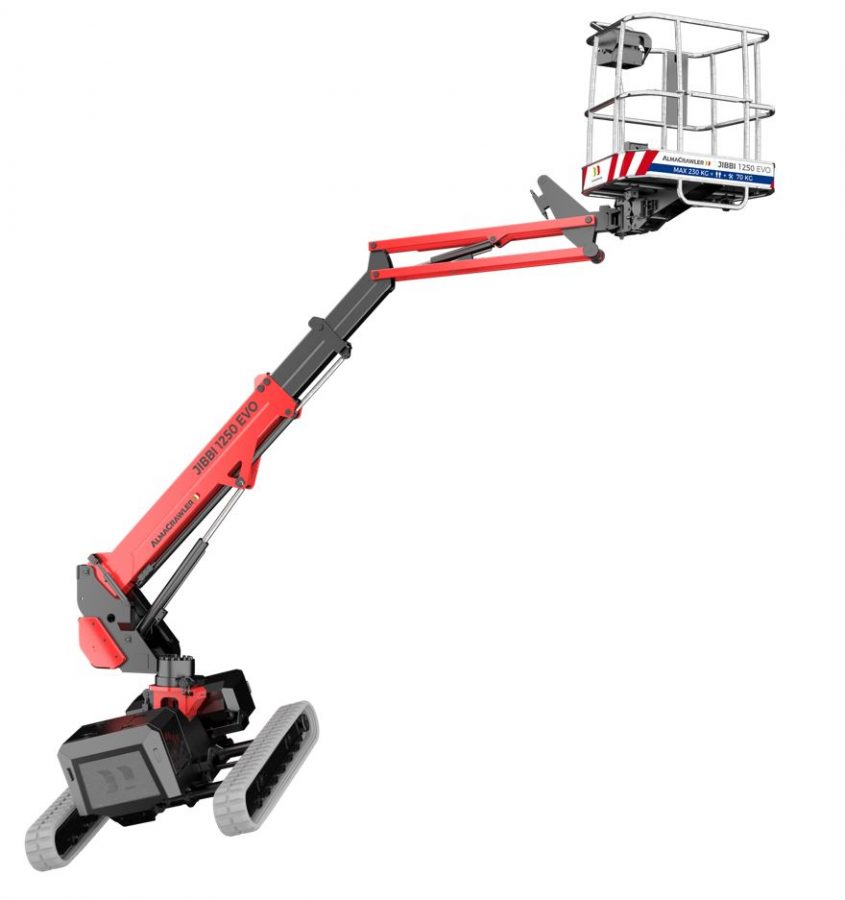

Jibbi 1250 Electric Tracked Articulated Boom

Almac Jibbi 1250 Electric Boom Lift has working height of 12.2M this all-terrain tracked articulated boom is ideal for uneven terrain with active dynamic bi-levelling chassis

Jibbi-1250-ELC

Equipped with a high-performance totally electric power system and a variable track crawler undercarriage, retractable from 1.95m to 1.15m, the JIBBI 1250 EVO features an innovative automatic telescoping boom levelling system that allows it to reach a working height of 12.2m.

At the same time, this allows a lateral variable outreach ranging from 5.4 to 7.0m depending on the operational conditions and the load in the basket, sized to offer a maximum load of 230kg with 2 operators.

Specifications

Weight3600 kg
Working height12.20M
Capacity230 kg
PowerLead Acid battery pack 420Ah-48V DC 4 kW

Features

  • 10.2M Platform height
  • Moving height 8.0M
  • Max Outreach (load 80KG) 7.0M
  • Max Outreach (load 230KG) 5.4M
  • Rotation angle: +/-110 degrees
  • Basket size: 1.4 x 0.7M
  • Max working width: 1.95M
  • Longitudinal levelling +/- 15 degrees
  • Lateral levelling +/- 15 degreees
  • Max gradeability: 25 degrees
  • Max side gradeability: 25 degrees
  • Drive speed: 2.5 km/h
  • Security speed: 0.3 Km/h
