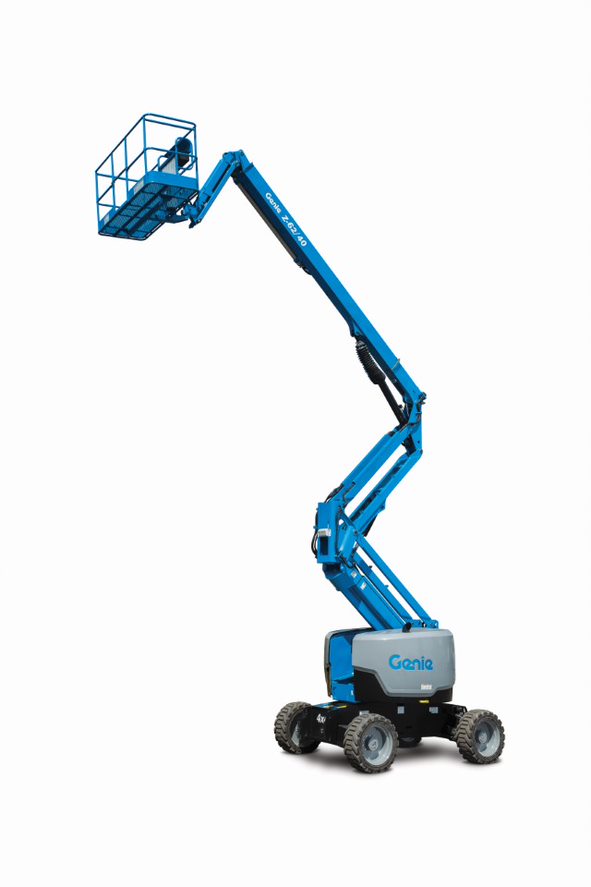

Z-62/40 Articulating Z Boom

Genie Z-62/40 is a diesel articulating boom with a zero tailswing, suitable for rough terrain at a max. height of 20.87M.

Z-62/40

Ideal for outdoor construction and industrial applications, the Genie® Z®-62/40 articulating boom lift with rough terrain capabilities at a maximum height of 20.87M. It provides lifting versatility with a combination of up, out and over positioning capabilities with outreach that’s second to none.

This unit is compact and hardworking, offering outstanding vertical and horizontal reach, manoeuvrability, working envelope and servicing. It has zero tailswing for rough terrain performance in tight spaces and the Genie Fast Mast™ system quickly gets workers from the ground to maximum height.

Specifications

Weight10886kg
Working height max.20.87M
Horizontal reach max.12.42M
Up and over clearance7.80M
Lift capacity max.227kg

Features

  • 12.42M Platform height
  • Engine: Deutz diesel, D2011L03i, 3 cylinder 35.8 kW (48hp)
  • Self-leveling platform
  • Hydraulic platform rotation
  • Proportional joystick controls
  • Drive enable
  • AC power cord to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Descent alarm
  • Zero tailswing
  • 360° continuous turntable rotation
  • Locking turntable covers
  • Positive traction drive
  • 2 speed wheel motors
  • Hydraulic oil cooler
  • Dual flashing beacons
  • Thumb rocker steer
  • Lockable platform control box covers
  • Rough terrain non-marking foam-filled tyres
