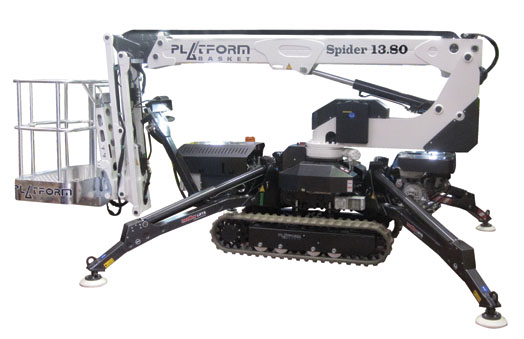

PB13.80 Spider Lift

PB13.80 tracked platform basket at max height of 12.99M - ideal for indoor & outdoor

The PB13.80 spider lift has a max. height of 12.99M and a super-compact access platform, mounted on a tracked chassis. It is perfect for all types of terrains, in particular rough terrains, but with non-marking tracks, it is also ideal for indoor use. The spider stabiliser legs can be set up in different positions and on different levels, to ensure the maximum working conditions, particularly where other machines cannot work. Ideal for arborists, rental companies, convention centres and painting contractors where hard-to-reach places, dual fuel and height access are needed. Please click here for a video overview of the benefits of a PB.1380.  Please click here for an Operator training video.

Specifications

Weight1620 kg
Working height max.12.99M
Capacity200 kg
Width78 cm

Features

  • Working height to the basket floor 10.99M
  • Cage dimensions 1.20 x 0.66 M
  • Max side outreach 7.70M
  • Height in stowed position 1.990M
  • Length 41.40M
  • Dual Fuel 240 volts/Petrol
  • Non-marking tracks
  • Able to fit through a standard door
  • Expanding/retracting tracks
  • Complies with AS1418.10 standards
