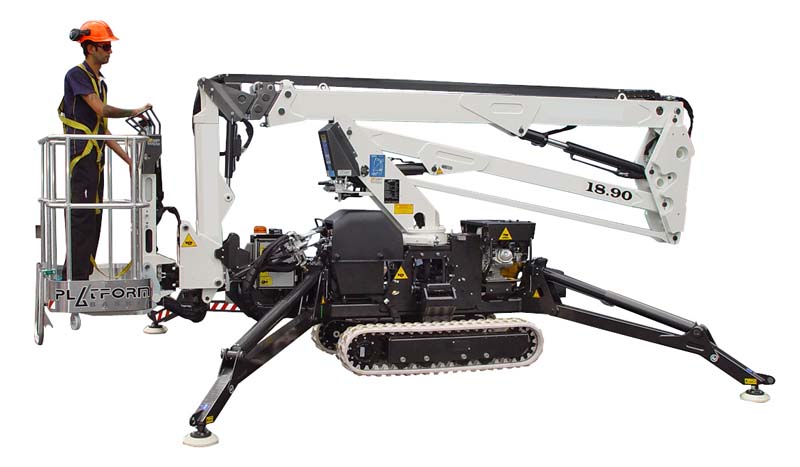

PB18.90 Spider lift

PB19.90 tracked platform basket at max height of 17.7M - ideal for indoor & outdoor

The PB18.90 spider lift has a max. height of 17.7M and a super-compact access platform, mounted on a tracked chassis. It is perfect for all types of terrains, in particular rough terrains, but with non-marking tracks it is also ideal for indoor use. Ideal for arborists, rental companies, convention centers and painting contractors with hard-to-reach places, dual fuel and height access are needed. The spider stabilizer legs can be set up in different positions and on different levels, to ensure the maximum working conditions, particularly where other machines cannot work.  Click here for a video showing the benefits of the PB18.90. Click here for the Operator training video.

Specifications

Weight2350 kg
Working height max. 17.7M
Capacity 200 kg
Width

Features

  • Working height to the basket floor 15.7M
  • Cage dimensions 1.20 x 0.66M
  • Max side outreach 9.30M
  • Height in stowed position 1.951M
  • Width 0.792M
  • Length 4.910M
  • Max gradeability deg 27° (51%)
  • Dual Fuel 240 volts/Petrol (Diesel Option)
  • Non marking tracks
  • Able to fit through a standard door
  • Expanding/retracting tracks
  • Complies with AS1418.10 standards
