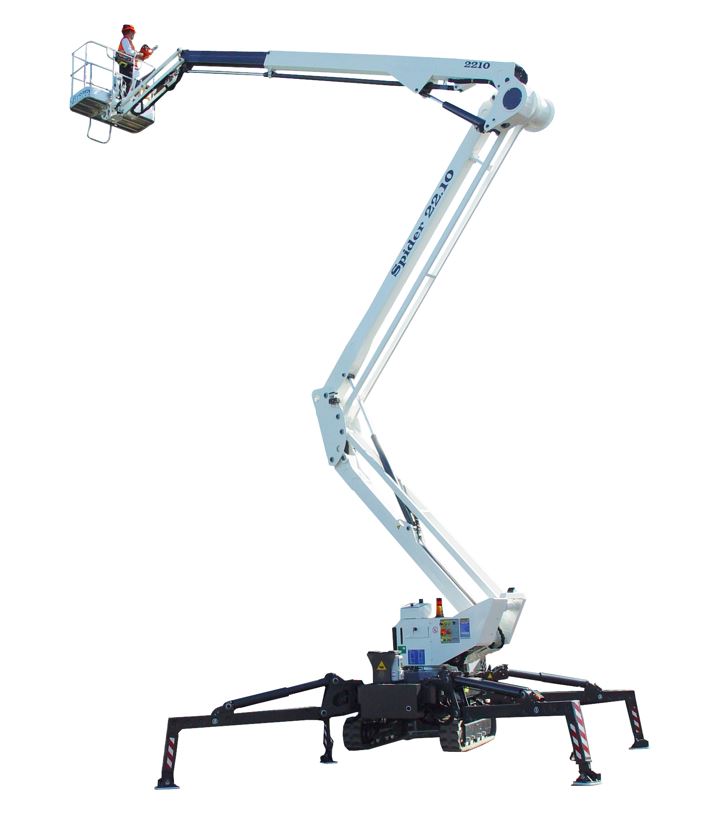

PB22.10 Spider Lift

PB22.10 tracked platform basket at max height of 21.70M - ideal for indoor & outdoor

The PB22.10 spider lift has a max. height of 21.70M a super-compact access platform, mounted on a tracked chassis. It is perfect for all types of terrains, in particular rough terrains, but with non-marking tracks it is also ideal for indoor use.

The spider stabilizer legs can be set up in different positions and on different levels, to ensure the maximum working conditions, particularly where other machines cannot work.

Click here to see a video showing the benefits of the PB22.10. Click here for the Operator training video.

Specifications

Weight 2980 kg
Working height max. 21.70M
Capacity 230 kg
Width1.62M

Features

  • Working height to the basket floor 19.70M
  • Cage dimensions 1.50 x 0.70M
  • Max side outreach 10.30M
  • Height in stowed position 2.15M
  • Length 5.63M
  • Max gradeability deg 16° (29%)
  • Dual Fuel 240 volts/Diesel Kubota
  • Non marking tracks
  • Expanding/retracting tracks
  • Remote Controlled
  • Complies with AS1418.10 standards
