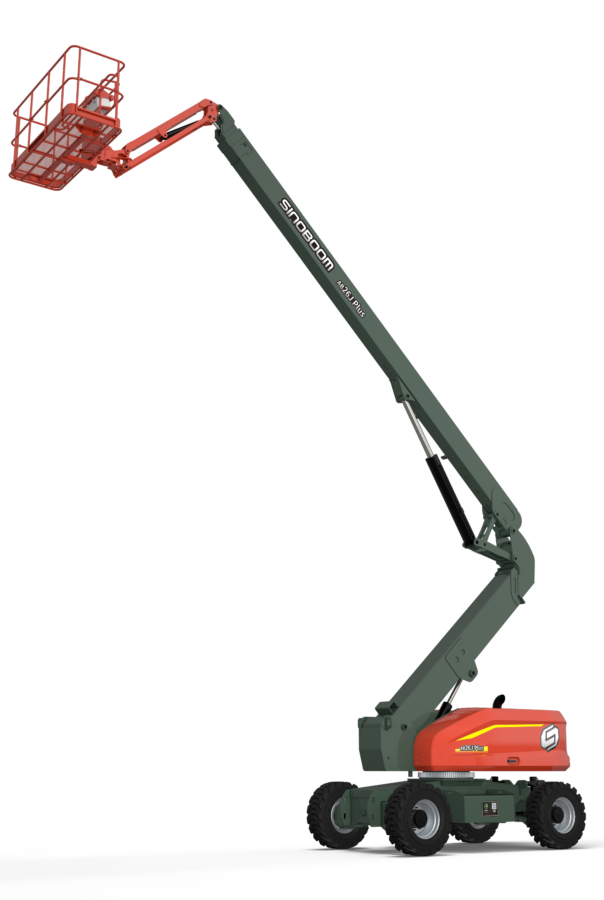

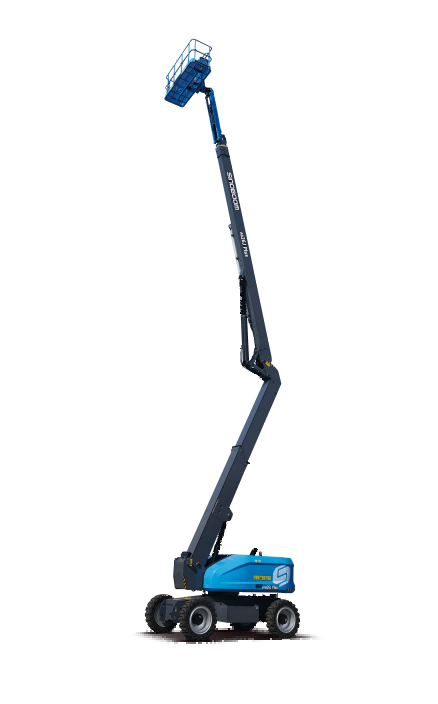

Sinoboom 27.65M Diesel Articulating Boom Lift – Extra Capacity
Maximum working height of 27.65M and a horizontal reach of up to 19.1M with extra capacity of up to 340kg
This articulated jib has a maximum extra platform capacity of 340kg (restricted) for up to 2 people with a gradability of up to 45%, and horizontal reach of up to 19.1M.
With extra capacity to accommodate up to two people (restricted) it is ideal for construction sites such as installing windows, roofing and exterior finishing as well as maintenance or repair work on multi-story buildings. Useful for industrial facilities, infrastructure projects, utility work and agricultural applications and remote locations where electric power might not be available.
Our knowledgeable support team is always available to assist with any questions or concerns you may have. You can book a demo with one of our access specialists. Genuine spare parts are also available and our specialist technicians can help keep your machine in tip top working condition.
Specifications
| Weight | 18760kg (four-wheel steering) / 18640kg (two-wheel steering) |
| Working Height | 27.65M |
| Platform Capacity | 230 kg / 340 kg |
| Power | Cummins QSF2.8T3NA60 43 kW |
| Horizontal Reach max (230kg / 340 kg) | 19.1M / 17.0M |
| Up & over Clearance | 9.07M |
Features
- Leading platform height compared with most other brands in this range
- Increased platform capacity 230kg / 340kg (unrestricted/restricted)
- 4WS with 4 steering modes for driving on the narrow job site
- The telescopic and lifting of the secondary boom are hydraulic and electric dual interlocked
- Max Working Height 27.65 m
- Max Platform Height 25.65 m
- Max Horizontal Reach (230kg / 340 kg) 19.1M / 17.0M
- Max Up and Over Clearance 9.07 m
- Length-Stowed 12.09 m / transport 9.49 m
- Width-Stowed 2.49 m
- Height-Stowed 2.93 m / transport 32.8 m
- Wheelbase 3.0 m
- Ground Clearance 0.46m
- Platform Size (L×W×H) 2.44m × 0.91m × 1.1 m
- Capacity 230kg / 340kg (unrestricted/restricted)
- Max Platform Occupants 2 Persons
- Drive Speed (Stowed) 0～4.8 km/h
- Drive Speed (Raised) 0～1.1 km/h
- Gradeability 45%
- Turntable Rotation 360o continuous
- Platform Rotation 180o
- Tilt Rating 5o
- Turning Radius (Inside/Outside) 3.65/6.9 m (Two-wheel steering) & 2.25/4.6 m (Four-wheel steering)
- Turntable tail swing 1.13m
- Max Allowable Side Force 400 N
- Max allowable wind speed 12.5 m/s
- Tire Spec/Type 385/65-22.5/foam-filled
- Drive × Steer 4WD×4WS (2WS optional)
- Hydraulic Tank Capacity 180L
- Fuel Tank Capacity 150L
- Cummins QSF2.8T3NA60 43 kW
- System Voltage 12V DC
- 4 WD × 4 WS
- Electric Platform Levelling
- Proportional control with 3 joysticks
- Tilt protection system
- Flashing beacon
- 7-in smart screen
- Automotive-grade sleeves for all pipes
- Secondary guarding device
- Telematics-ready connector
- Emergency lowering system
- Active oscillating function
- Weighing system
- 180 degree Platform rotation
- Max tilt to 5 degrees
- Continuous turntable rotation at 360 degrees
- Horn and buzzer for safety warning
- Fault diagnostic system
- Rear position and travel confirmation
- Mechanical release for travel braking
- Platform with inward swinging gate
- Tool box
- Manual storage box
- Foam-filled tyres
- Drive into container for transport
- Four-wheel brake
- Foot switch
- 2.4m side entry swing gate
- Motion alarm
- AC power cable to the platform
Options & Accessories
- AC power socket on platform
- Platform work light
- Half-mesh (for platform with side entry swinging gate)
- Glass bracket (for platform with side entry swing gate)
- Solid tyre
- 2WS
- Overhead anti-collision device
- Non-marking foam filled tyres
- Hydraulic generator
- Anti-finger pinch device
Each elevated work platform comes with an impressive factory warranty and a comprehensive After Sales Support programme supported by YR Connect, YR’s cloud-based online solution for maintenance, servicing, warranty and location services to protect against theft.
Warranty:
- Structural: 5 Years
- Mechanical, Electrical, Hydraulic: 2 Years
- Engine: 2 Years
