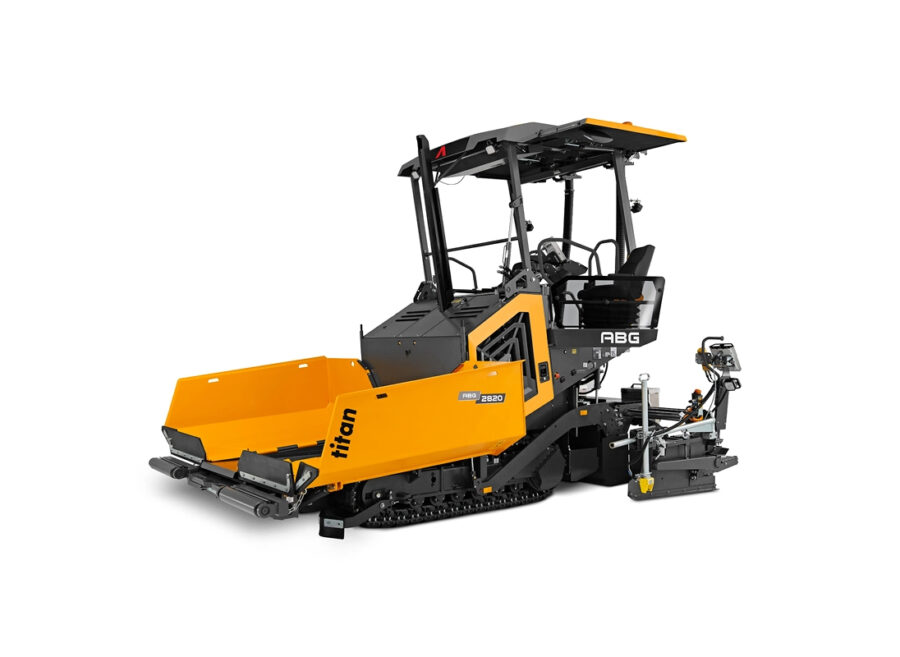

Ammann ABG Diesel 8.1 Ton Tracked Asphalt Paver – 4.5m max

The Ammann ABG 2820 is a city-class 8.1 Ton asphalt paver delivering reliable paving performance at a max screed width of 4.5m

AGB 2820

The machine combines low noise levels with reduced emissions, while offering flexible single or dual conveyor configurations to suit a variety of paving applications. Its individually operated hopper wings and generous 9-tonne hopper capacity help maintain a steady material flow, at 330t/hr.

The intuitive EPM3 control system brings the same advanced functionality found on larger pavers, making operation simple and efficient through its easy-to-use Settings Manager.

The ABG 2820 also offers impressive screed flexibility, allowing contractors to match the machine to a wide range of paving widths. The new VB 40 screed can pave from 1.8 to 4.5 metres, while the Variomatic VB 30 screed handles widths from 1.5 to 4 metres.

Ideal for urban road construction where space is constrained, road repairs and patching, bike paths and footpaths, small parking lots and commercial yards, alleyways and tight spaces.

Specifications

Weight8155 kg
Operating weight10011kg (includes standard screed)
Machine width1740 mm
EngineVolvo D308H Diesel

Features

  • Electronic drive control
  • Electronic Paver Management (EMP 3)
  • Engine: Volvo D308H Diesel
  • Basic Paving width 1.5m
  • Max paving width 4.5m
  • Paving Output 330t/hr
  • Fuel Tank 110L
  • Electronic drive control
  • Load dependent efficient drive system
  • Automatic track tensioner
  • Lifetime lubricated crawler track rollers
  • Forged and hardened crawler track links
  • Smart rubber pad
