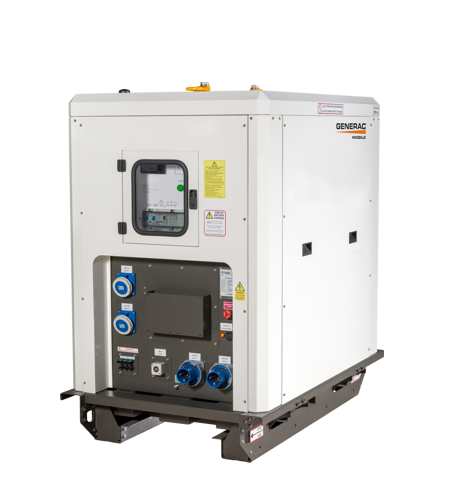

10 kVA Battery Energy Storage System

10 kVA single phase Battery Energy Storage System (BESS) ideally suited to deliver reliable mains power cost-effectively with environmental sensitivity.


Power can be derived from solar PV, connection to an external grid supply, or from a diesel generator or wind turbine. Energy is automatically managed from any or all of these energy sources to ensure the most efficient, lowest maintenance and best environmental impact is achieved.

Energy stored within the unit is converted electronically into mains power. Remote monitoring ensures real-time monitoring and maintenance can be effected from any location in the world.


Output Power Continuous10 kVA
Output Power -5s peak15 kW


  • Single Phase
  • 230 volts
  • Frequency 50/60 Hz
  • Gel led acid OPzV-S
  • Nominal Capacity 40 kWh
  • Max. input (1-phase 230V) 63 A
  • System pass-through capacity 100 A
  • Protection Rating 34 IP
  • Weight 1930 kg
  • Deep cycle
