NEW

DU-190 Diesel Compressor

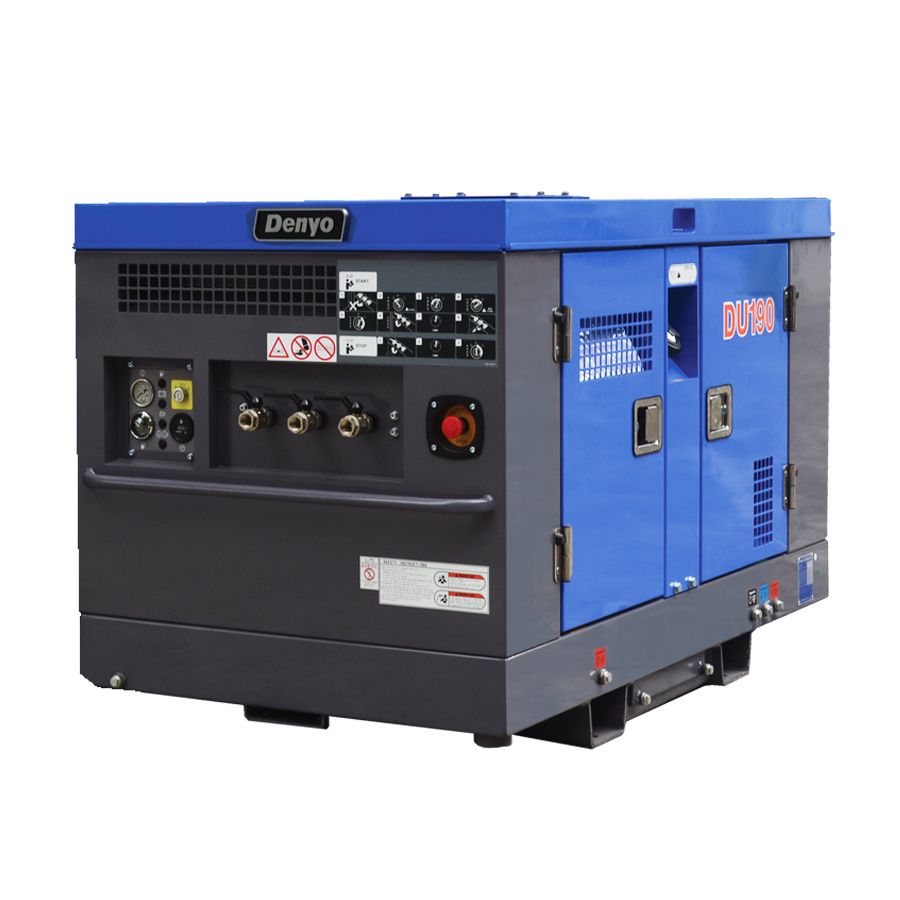

The Denyo DU-190 compressor is versatile, robust and efficient

DU-190

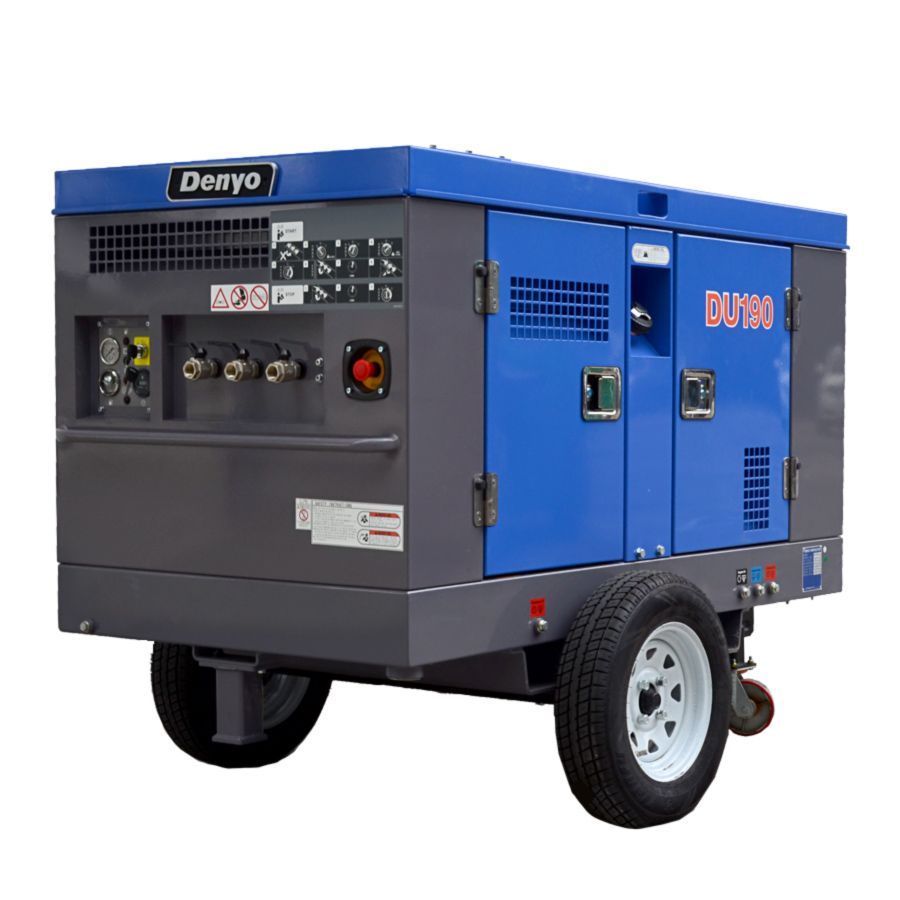

This Denyo DU-190 comes in a light and compact package. For the ease of transportability, the DU-190 compressor is designed with a footprint at least 10% more compact than any comparable model. A trailer can also be mounted below the DU-190 for users who requires high movability. The canopy is robustly constructed with solid steel that enable stackability up to 3 levels.

Unlimited supply of clean air at constant pressure for daily pneumatic usage

Specifications

Compressor TypeSingle Stage, Oil Injected Screw Compresso
Compressor Rated Pressure Mpa(psi)Bar 7, Psi 100
Compressor Air Delivery M3/min(cfm)m³/ min = 4.87, Cfm = 172

Features

  • Spill containment protection
  • Small footprint with high versatility
  • Weather proof
  • Environmentally friendly
  • Engine model: Kubota V1505T
  • Engine No. of cylinders – Bore x Stroke mm: 4
  • Engine Fuel Tank Capacity L: 62
  • Engine Coolant Capacity L: 8.5
  • Length *2 mm: 1870
  • Width *2 mm: 950
  • Height *2 mm: 1070
  • Dry Weight KG: 680
  • Sound Level *4 7mdB(A): 70
