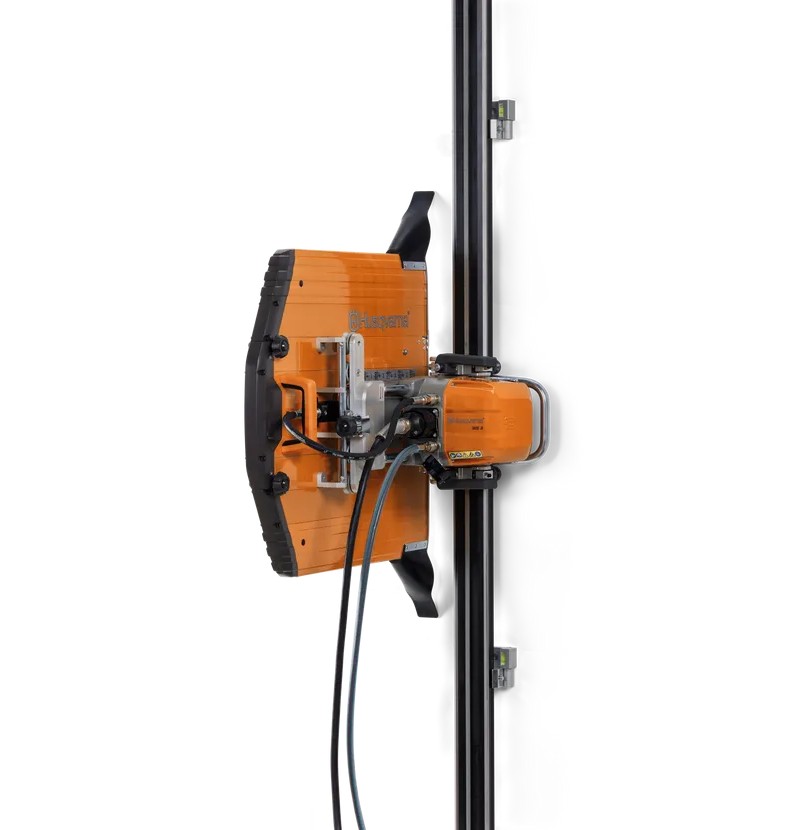

WS 8 395mm High Frequency Wall Saw
WS 8 has a cutting depth of up to 395mm with both 3-phase and 1-phase power source.
The WS 8 is a streamlined electric wall sawing system featuring next-generation PRIME™ technology. With a cutting depth capacity of up to 395 mm and an impressive power-to-weight ratio, the light and effective WS 8 is particularly tailored to smaller or mid-sized projects. The system is operable with both 3-phase and 1-phase power sources. A user-friendly design and modularity make the WS 8 a top choice for all-round cutting tasks.
Specifications
| Blade diameter min: | 600 mm |
| Blade diameter max: | 900 mm |
| Cutting Depth max: | 3950mm |
Features
- Max spindle torque 68 Nm
- Product length: 286mm
- Output shaft rpm max. 1150 rpm
- Corded power source
- 1 gearbox speed
- Water flow min. 3.5 L/min
- Water pressure max. 8 bar
- Water temp at min flow max. 35 degrees C
- Product size L x W x H: 286mm x 350mm x 412mm
- Weight 92 kg
- Sound power level (LWA) 105 dB(A)
