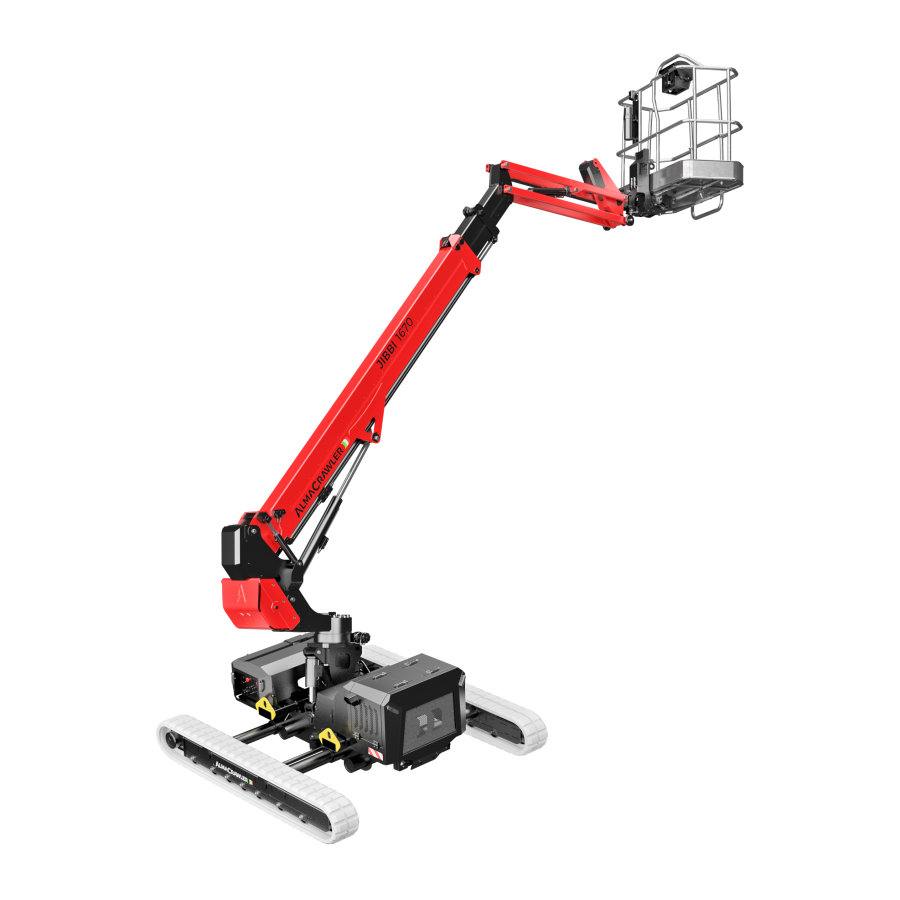

Battery Powered Jibbi 1670 LTH Tracked Articulated Boom

Almac Athena Jibbi 1670-LTH with a working height of 16M this all-terrain tracked articulated boom is ideal for uneven terrain with Lithium battery power


JIBBI 1670 Lithium represents the evolution of the JT series, not only in terms of working height but also in terms of technology, versatility and innovation. This new addition stands out not only due to its maximum working height of 16M, but also for the operating reach that ranges from 6.7 to 8.5 m and the possibility for the operator to travel up to a moving height of 9m. Equipped with Lithium battery pack.

Introducing a new feature, a variable undercarriage track width with different track-opening configurations that allow the operator to work in narrow spaces but then stabilize to achieve full working height – operating track widths: 1.35 m, 1.90 m, 2.20 m and 2.45 m.


Weight3910 kg
Working height16M
Capacity230 kg
PowerLithium battery pack 300Ah-48V DC 4 kW


  • 14.0M Platform height
  • Moving height 9.8M
  • Max Outreach: load 80KG = 8.5M / load 140KG = 7.7M / load 230KG = 6.7M
  • Rotation angle: +/-110 percent
  • Basket size: 1.4 x 0.7M standard – optional 1.8 x 0.7M
  • Max working width: 2.45M
  • Longitudinal levelling +/- 15 percent
  • Lateral levelling +/- 15 percent
  • Max gradeability: 25 percent
  • Drive speed: 2.5 km/h
  • Security speed: 0.4 Km/h
  • Lithium battery pack 300Ah-48V DC 4 kW
