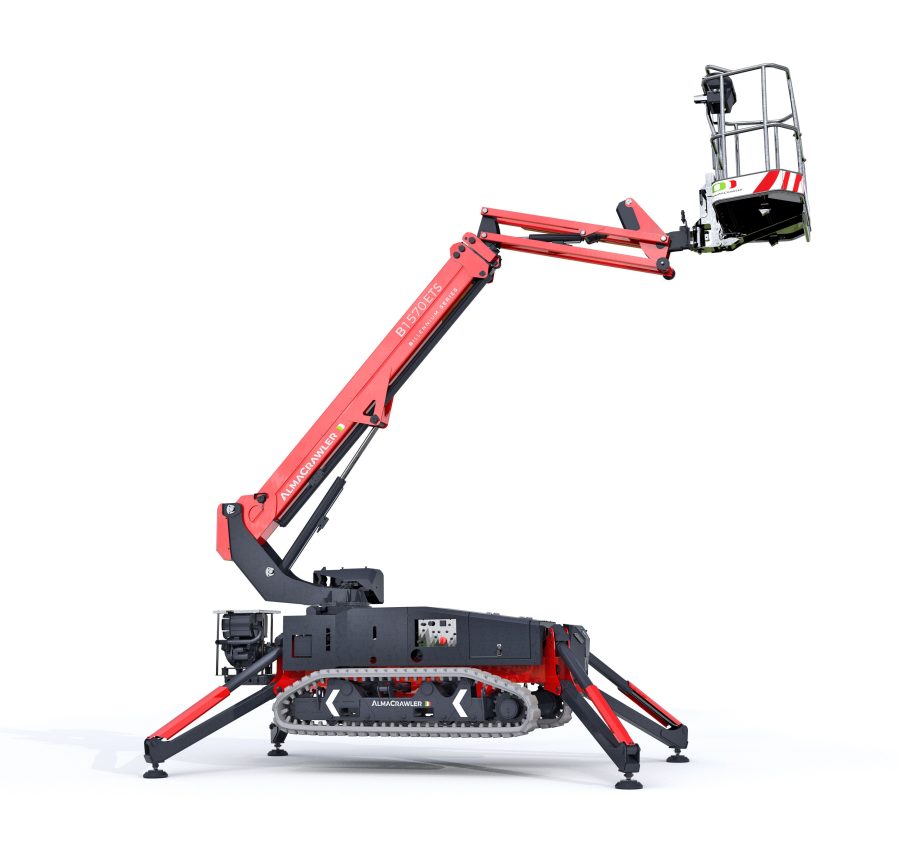

Billennium B1570 ETS Visual Tracked Spiderboom
Almac Billennium B1570 ETS Visual has a working height of 14.8M is an all-terrain spider boom ideal for uneven terrain
The BT LINE range of Spiderboom combines the characteristics of self-propelled wheeled aerial platforms and stabilised tracked aerial platforms. The benefits of B570 is its unique automatic stabilisation systems as well as the ability to move at a height of 8.6M. There are two types of stabilisation systems: VISUAL with a singled fixed stabilisation area and the innovative Quick-PRO, a fully automated stabilisation system with 6 different combinations
This Spiderboom model reaches a working height 14.8 metres and is variable in Quick-Pro. with a hydraulic expanding tracks system. This provides greater adaptability which is ideal for the hire / rental industry and end users alike.
Specifications
| Weight | 2617kg |
| Working height | 14.8M |
| Capacity | 230 kg |
| Power | HONDA GX390 7.0 kW / 9.4 HP |
Features
- 12.8M Basket floor
- Moving height 8.6M
- Max Outreach: 80kg:10.9M / 140kg: 8.6M / 200kg: 8.0M / 250kg: 7.7M
- Rotation angle: +/-190 percent
- Basket size: 1.48 x 0.74M
- Basket rotation angle +/- 70 degrees
- Min stowed width: 0.79M
- Working width on tracks: 1.39M
- Longitudinal levelling by SPS +/- 10 percent
- Lateral levelling with SPS+/- 5 percent
- Stabilisation Area: 2.49M x 4.08M
- Drive speed: 2.5 km/h
- Security speed: 0.4 Km/h
- Non-marking tracks
- Engine: HONDA GX390 7.0 kW / 9.4 HP
- Also powered by 240V electric
- Hydraulic expanding tracks
- Wired remote and ground controls
Resources & downloads
- Almac Billemmium B 1570 ETS Visual Operators Manual (PDF)
- Almac Billennium B 1570 ETS Visual Brochure (PDF)
