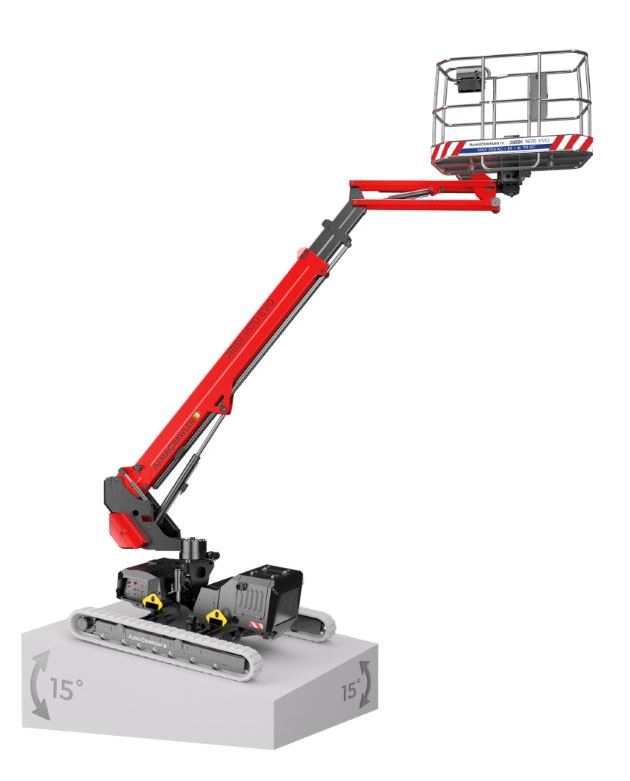

Jibbi 1670 EVO Tracked Articulated Boom
Almac Jibbi 1670-EVO with a working height of 16M this self-levelling all-terrain tracked articulated boom is ideal for uneven terrain
JIBBI 1670 EVO represents the evolution of the JT series, not only in terms of working height but also in terms of technology, versatility and innovation. This new addition stands out not only due to its maximum working height of 16M, but also for the operating reach that ranges from 6.7 to 8.5 m and the possibility for the operator to travel up to a moving height of 9m.
Introducing a new feature, a variable undercarriage track width with different track-opening configurations that allow the operator to work in narrow spaces but then stabilize to achieve full working height – operating track widths: 1.35 m, 1.90 m, 2.20 m and 2.45 m.
Specifications
| Weight | 3850 kg |
| Working height | 16M |
| Capacity | 230 kg |
| Power | Yanmar 3TNM68-AS 14 kW - 19.2 Hp |
Features
- 14.0M Platform height
- Moving height 9.8M
- Max Outreach: load 80KG = 8.5M / load 140KG = 7.7M / load 230KG = 6.7M
- Rotation angle: +/-110 percent
- Basket size: 1.4 x 0.7M standard – optional 1.8 x 0.7M
- Max working width: 2.45M
- Longitudinal levelling +/- 15 percent
- Lateral levelling +/- 15 percent
- Max gradeability: 25 percent
- Drive speed: 2.5 km/h
- Security speed: 0.4 Km/h
- Lithium battery pack 300Ah-48V DC 4 kW
Resources & downloads
- Almac Jibbi 1670 Range Product Brochure (PDF)
- Almac Jibbi 1670 EVO Product Bochure (PDF)
- Almac Jibbi 1670 Parts Manual (PDF)
