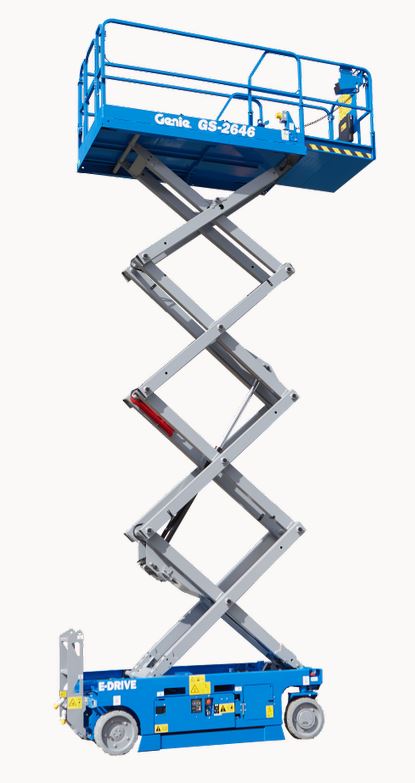

Genie GS-2646 Electric Scissor Lift

Genie GS-2646 scissor lift weighs 2447kg for indoors and outdoors in E-Drive at a max working height of 9.8M

GS 2646

The Genie® GS™-2646 E-Drive slab scissor lift is suitable for work indoors and outdoors on firm, level surfaces where space is limited. Its state-of-the-art Genie AC electric E-Drive system offers unmatched efficiency and runtime on installation, maintenance and construction jobs where a significant amount of driving is required.


Working heightIndoor: 9.8M / Outdoor 7.8M
Lift capacity454kg / Extension deck extended: 113kg


  • Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
  • Quiet, zero-emission electric operation
  • Front-wheel drive and zero inside turning radius for easy positioning
  • 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
  • Large platform workspace with 0.91m roll-out platform extension
  • Swing out components trays for easy access
  • User-friendly Smart Link™ dual-zone controls for indoor and outdoor use
  • E-Drive
  • Steel Platform 2.26m x 1.16m
  • Double door access
  • Folding rails with full-height swing gate
  • 0.91 m (3 ft) extension deck
  • Platform control with battery charge indicator and diagnostic display
  • Manual platform lowering valve
  • Emergency stop at both platform and ground controls
  • Rear wheel multiple disc brakes
  • Front wheel hydraulic dynamic braking
  • Solid non-marking tyres
  • Dual flashing beacons
  • User-friendly Smart Link™ dual-zone controls for indoor and outdoor use
  • POWER- 24 V DC (four 6 V 225 Ah batteries)- Universal 20 amp smart charger
