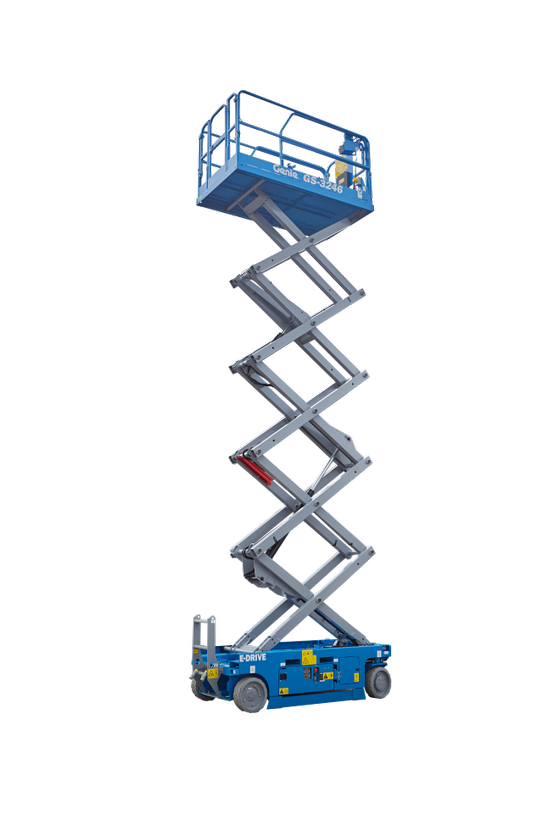

Genie GS-3246 Electric Scissor Lift

Genie GS-3246 Scissor lift E-Drive weighs 2,812kg with compact dimensions and zero inside turning radius at a max working height of 11.75M

GS-3246

Compact dimensions and zero inside turning radius make the Genie® GS™-3246 E-Drive slab scissor lift ideal for indoor and outdoor construction, maintenance, and installation tasks on level ground and in tight spaces. Boasting the state-of-the-art Genie AC electric E-Drive system, it offers unmatched efficiency and runtime when a significant amount of driving is required.

Specifications

Weight2,812kg
Working heightIndoor: 11.75M / Outdoor: 8.71M
Lift capacity318kg / Extension deck extended: 113kg
PowerElectric

Features

  • Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
  • Quiet, zero-emission electric operation
  • Easy to manoeuvre in tight spaces and to drive through standard double doors
  • 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
  • Large platform workspace with 0.91 m (36 in) roll-out platform extension
  • Swing out components trays for easy access
  • User-friendly Smart Link™ dual-zone controls for indoor and outdoor use
  • E-Drive
  • Steel Platform 2.26m x 1.16m
  • Folding rails with full-height swing gate
  • 0.91 m (3 ft) extension deck
  • Solid non-marking tyres
  • Dual flashing beacons
  • Motion alarm
  • POWER- 24 V DC (four 6 V 225 Ah batteries)- Universal 20 amp smart charger
