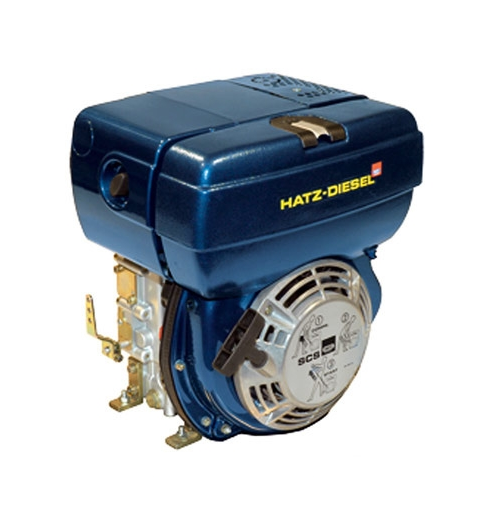

Hatz 1B20,1B30 Single Cylinder
The Hatz B range industrial engines are mmall, light-weight, for universal application air-cooled with flywheel blower fan
Small, light-weight, for universal application air-cooled with flywheel blower fan. Forced-feed circulating lubrication. Single Cam System (SCS) Recoil- and/or electric start 12 V and 24 V2.8 kw to 6.6 kw
Features
- Air-cooled single-cylinder 4-stroke Diesel engine.
- Vertical cylinder.
- Light allow diecast cylinder crankcase.
- Light allow cylinder head.
- Forged crankshaft.
- Light allow piston for low free forces of gravity.
- Lubrication by pressurised circulation of oil fine screen filtering in main flow.
- Valve control by rocker push-rods tappets and camshaft.
- Direct injection.
- Compression from 1:20.5 to 1:22. Good cold start performance.
- Fuel orientated mixture preparation. Result: excellent exhaust quality. Certificates from EPA and CARB.
- Speed regulation by spring-loaded governor. Proportionality < 5% at 3000 / 3600 r.p.m.
- The control cover houses the governor the entire valve drive the injector pump drive the automatic decompression system and oil pump.
- Oil drain on both (narrow) sides of the engine. This gives free access of at least one drain position for almost al
