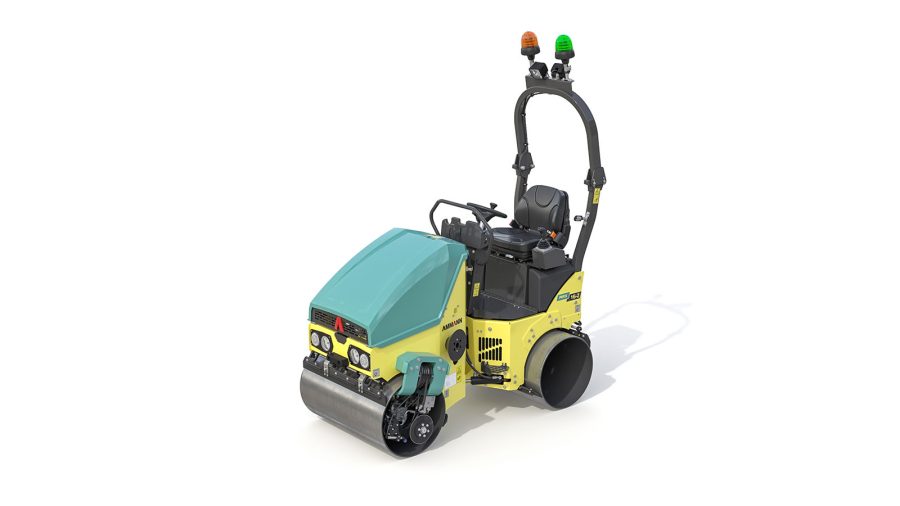

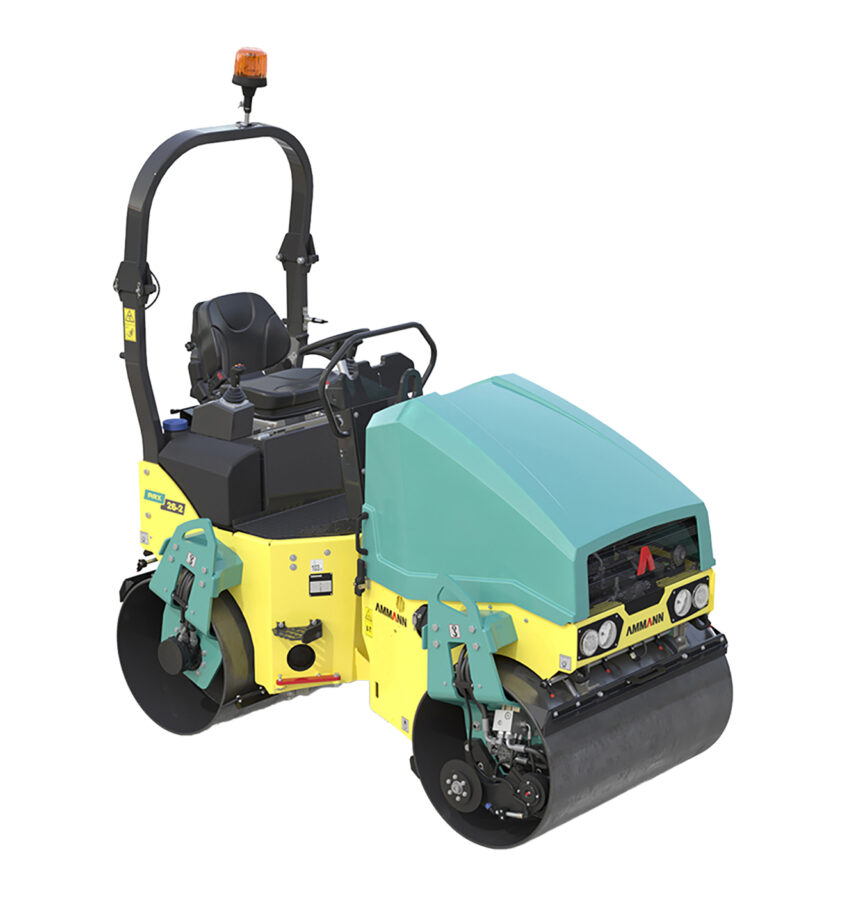

ARX16-2 Light Tandem Vibrating Roller

ARX16-2 tandem 1.5 ton vibratory roller is ideal for full-flush work such as curbstones and walls


The compact ARX16-2 at 1510kg is a light articulated ride-on light vibrating roller designed for use on small to medium construction sites in the fields of road construction, landscape gardening and landscaping. ARX rollers have proved themselves as very efficient and effective machines for blacktop compaction and for compacting unbonded base layers.

Ammann markets the only tandem rollers in the 1 to 2.5 tonne class that offer full-flush compaction on the right and on the left, double traction at front and rear, and double vibration at front and rear. No wheel supports to obstruct compaction work up against curbstones and walls. No need for subsequent compaction with smaller machines


Weight 1510kg
Drum Width 900mm
Centrifugal Force I / II20kN / 23 kN
Frequency 60/70 vpm


  • Operation weight 1655kg
  • Power by Kubota D1105
  • Full side clearance right and left
  • Easy engine access
  • Teflon articulated joint with lifetime lubrication
  • Multiple water filtration
  • Foldable ROPS for easy transport
  • Two scrapers per drum
