E-Z PLACER

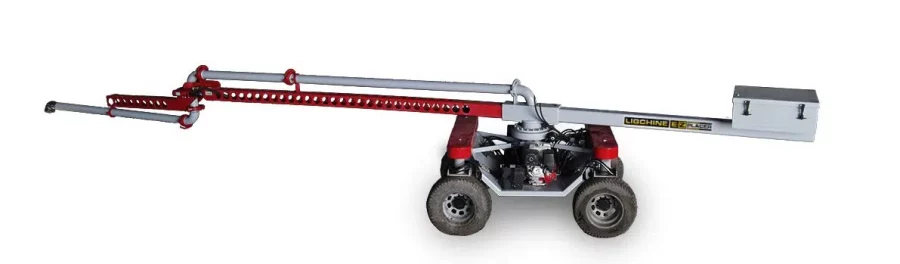

Ligchine E-Z PLACER all-in-one self-propelled concrete placer and line moving system
The Ligchine E-Z PLACER® is a self-propelled concrete placer machine and line moving system all in one single, portable unit. This all-in-one machine delivers industry-leading reach and manoeuvrability thanks to the 8m /100mm delivery tube, 360 degree swivel on the main and tip boom sections, and the agile steering system. With a 152cm wide footprint and a weight of 1814kg the Ligchine E-Z PLACER provides a copact and versatile package that cab efficiently be used in most job applications.
Specifications
| Weight | 1814kg |
| Length (M) | 11.1 |
| Height (M) | 1.8 |
| Engine | Honda GX390 13HP petrol |
Features
- Width: 1.5m
- Length: 11.1m
- Height: 1.8m
- Weight: 1814kg
- All-wheel drive with all-wheel steering
- 360 degree placer boom
- Placer boom reach: 8.2m
- Main boom 5.3m left-right 360 degree swivel
- Tip boom 3.7m continuous 360 degree swivel
- Wireless remote
- Delivery line: 100mm
