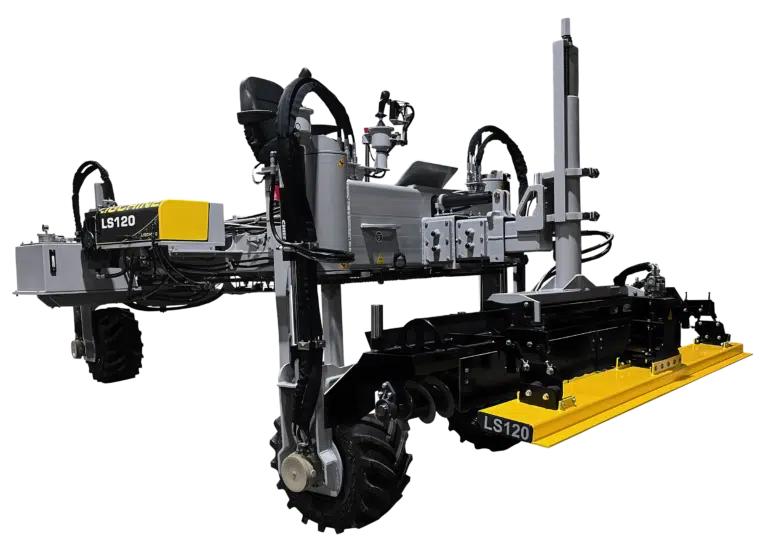

Laser-guided Concrete Screed – LS120
Laser Guided screed with 2.4M screen head and 11.1 square metres coverage per screed pass
The Ligchine® LS120 laser-guided screed is designed to offer a more affordable solution for smaller contractors seeking to own a Laser-Guided Screed. The machine leverages advanced frame leveling technology.
The LS120™ is equipped with a highly maneuverable 3-wheel steering and is joysticks-operated. With an 8-foot screed head and a 16-foot boom reach, the LS120™ delivers exceptional productivity across a variety of applications. All these features are achieved while keeping the size and weight of the machine compact, providing the ability to transport the machine with a truck and trailer.
Specifications
| Weight | 2105kg |
| Length (M) | 5.1 |
| Height (M) | 2.2 |
| Engine | Honda IGX800 24.9 Hp Petrol |
Features
- Width: 2.01m
- Length: 5.1m
- Height: 2.2m
- Weight: 2105kg / with head: 2268kg
- All wheen steering
- Can be transported with trailer or flatdeck truck
- Screed coverage: 11.1M2
- Comes with: 2D Laser levelling for Grade, Slope. Dual Scope Topcon LS-B200W Receivers
- Optional: 3D Systems for Contoured concrete paving – Yes
