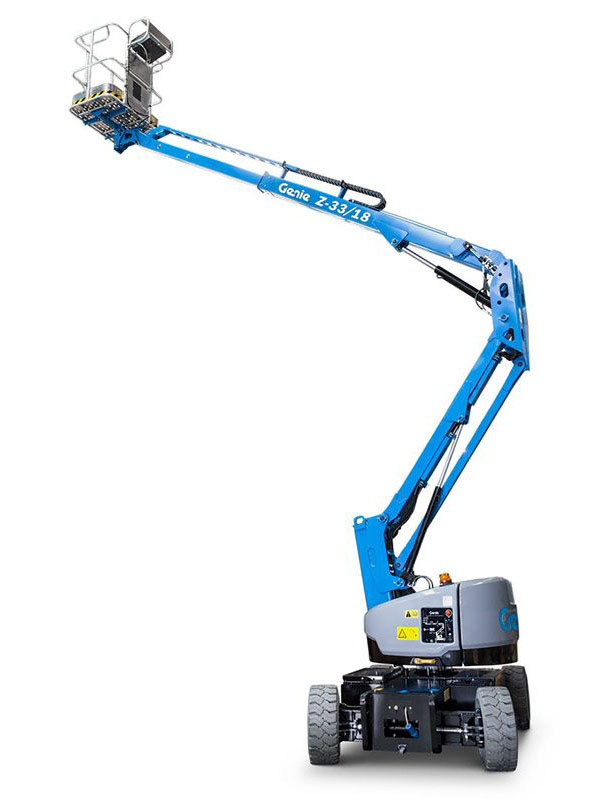

Genie Z-33/18 Articulating Z Boom Electric

Genie Z-33/18 is an electric articulating boom is ideal for multiple indoor and outdoor jobs at a max. height of 12.0M.


With the zero-emissions Genie® Z®-33/18 articulating electric boom lift, drive through standard doorways, around obstacles and access overhead work from aisles even in areas where weight is limited. Versatile and simple to operate at a woring height of 12M, this boom lift is ideal for multiple indoor and outdoor jobs on sensitive grass or paved surfaces and flooring such as airports, shopping centres, theatres, etc.


Weight3665 kg
Working height12M
Horizontal reach5.57M
Up and over clearance4.28M
Lift capacity200 kg


  • 1.17m wide steel platform
  • Solid rubber non-marking tyres
  • 1.90M wheelbase width
  • 1.90M inside turning radius
  • Self-levelling platform
  • Fully proportional controls
  • Thumb rocker steer
  • Drive enable
  • Horn
  • Hour meter
  • Tilt alarm
  • Alarm package
  • 400 deg; non-continuous turntable rotation
  • Variable speed high efficiency turntable rotation
  • On-board easy to understand diagnostics
  • Dual flashing beacons
  • Certified load sensor
  • 48 V DC deep cycle battery pack
  • 24 V DC auxiliary power
